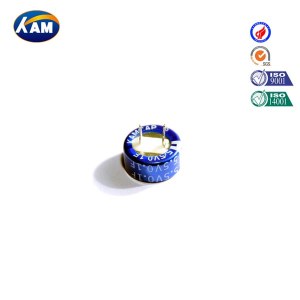

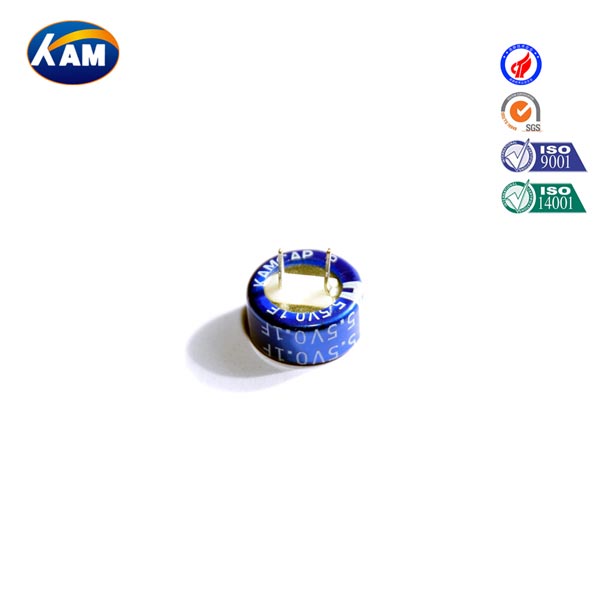

Coin Type Series 0.1F~1.5F 5.5V super capacitor
Quantité : 100000/day
Kamcap is one of the earliest supercapacitor manufacturers in China to develop super capacitor 5.5 v.
Performance characteristics of 0.1F~1.5F 5.5 v 1f capacitor: Standard energy series.
0.1F~1.5F 5.5V coin capacitor Typical application: RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Coin Type Series 0.1F~1.5F 5.5V Super Capacitor Specification Sheet：
|
Series name |
SE Series |
|
Type name |
SE -5R5-D |
|
Rated voltage VR |
5.5V |
|
Surge voltage |
5.8V |
|
Capacity range |
0.1F~1.5F |
|
Operating temperature range |
-25~ +70°C |
|
Product life |
Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR, Capacity attenuation≤30%, ESR change≤4 times. |
|
High temperature endurance life：70℃, maintain VR, 1000 hours. Capacity attenuation≤30%, ESR change≤4 times |
SE-5R5-D （Coin type series ultra super capacitor）Product performance list
|
Model |
Capacity F |
ESRΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
SE-5R5-D104VYC3H |
0.1 |
100 |
50 |
13.0 |
6.5 |
5 |
|
SE-5R5-D104VYH3E |
0.1 |
100 |
50 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D104VYV3C |
0.1 |
100 |
50 |
11.5 |
12.33 |
4.7 |
|
SE-5R5-D224VYC3H |
0.22 |
80 |
40 |
13.0 |
6.5 |
5 |
|
SE-5R5-D224VYH3E |
0.22 |
80 |
40 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D224VYV3C |
0.22 |
80 |
40 |
11.5 |
12.3 |
4.7 |
|
SE-5R5-D334VYC3H |
0.33 |
80 |
40 |
13.0 |
6.5 |
5 |
|
SE-5R5-D334VYH3E |
0.33 |
80 |
40 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D334VYV3C |
0.33 |
80 |
40 |
11.5 |
12.3 |
4.7 |
|
SE-5R5-D474VYC3H |
0.47 |
80 |
40 |
13.0 |
6.5 |
5 |
|
SE-5R5-D474VYH3E |
0.47 |
80 |
40 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D474VYV3C |
0.47 |
80 |
40 |
11.5 |
12.3 |
4.7 |
|
SE-5R5-D684VYC3G |
0.68 |
30 |
15 |
20.5 |
7 |
6 |
|
SE-5R5-D684VYC3H |
0.68 |
30 |
15 |
20.5 |
7.4 |
5 |
|
SE-5R5-D684VYH3C |
0.68 |
30 |
15 |
18.7 |
5.5 |
20 |
|
SE-5R5-D684VYV3C |
0.68 |
30 |
15 |
18.7 |
20.2 |
5 |
|
SE-5R5-D105VYC3G |
1 |
30 |
15 |
20.5 |
7 |
6 |
|
SE-5R5-D105VYC3H |
1 |
30 |
15 |
20.5 |
7.4 |
5 |
|
SE-5R5-D105VYH3C |
1 |
30 |
15 |
18.7 |
5.5 |
20 |
|
SE-5R5-D105VYV3C |
1 |
30 |
15 |
18.7 |
20.2 |
5 |
|
SE-5R5-D155VYC3G |
1.5 |
20 |
10 |
20.5 |
7 |
6 |
|
SE-5R5-D155VYC3H |
1.5 |
20 |
10 |
20.5 |
7.4 |
5 |
|
SE-5R5-D155VYH3C |
1.5 |
20 |
10 |
18.7 |
5.5 |
20 |
|
SE-5R5-D155VYV3C |
1.5 |
20 |
10 |
18.7 |
20.2 |
5 |
Typical Application
|
Series |
Application range |
Instance |
|
SP, LR, HP, HT |
Backup power |
RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
|
SE, HP, HE |
Energy storage |
Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
|
SE Coin type, HE |
Energy storage |
Flashlights, water meters, gas meters, taillights, small appliances, etc. |
|
HP、LR |
High power support |
Wind power, locomotive start, ignition, electric vehicles, etc. |
|
MK |
Backup power High current operation |
Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
As one of the most professional low esr capacitor manufacturers of china super capacitor, we have been devoting ourselves in providing high quality supercapacitors for sale with competitive price. If you want to buy super capacitor, don't hesitate to contact.
