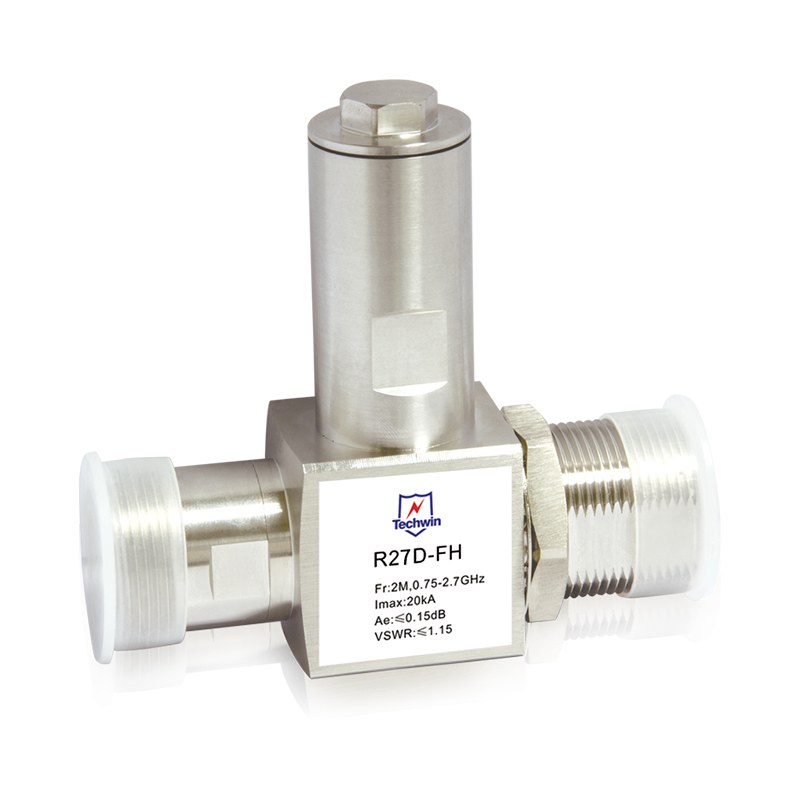

Compound Antenna Feeder Protector
Designed for antenna coaxial device and receive system not to be spoiled by lightning over-voltage, induced over-voltage, and static discharge.
IEEE 802.11b and 802.11g WLAN
2G，3G，4G, 5G communication
GSM, CDMA, WCDMA, TD-LTE, FDD-LTE
Smart antenna, SDMA
Information about RF surge arrester, rf surge arrestor, just visit our website.
Technical Parameters Of Compound Antenna Feeder Protector
|
Model |
R27D-FH |
R27N-FH |
|
Lightning protection zone(LPZ) |
1-2 |
|
|
Class |
|
|
|
According to DIN VDE 6075 Part 6 (Draft11.89)A1, A2 |
C |
|
|
According to IEC61643 |
II |
|
|
Max continuous operating voltage Uc |
≤70V |
|
|
20KA |
|
|
Working frequency--E1 port transmission |
2M |
|
|
Working frequency--RF transmission |
0.75--2.7GHz |
|
|
Protection level Up ( In ) |
≤200v |
|
|
Insertion Loss |
≤0.15db |
|
|
Standing-wave ratio |
≤1.15 |
|
|
Interface form |
DIN |
N |
|
Working conditions |
Temperature: -40 to 80℃, Relative humidity: ≤95％ |
|
|
Standards compliance |
IEC6000, EN60950 |
|
|
Mounting |
Be installed between protected equipment and the signal line |
|
|
Material |
stainless steel+Copper/ silver white |
|
|
IP code |
IP20 |
|
Features Of Compound Antenna Feeder Protector
DC pass
Allow 2.176MHz signal to pass for AISG system
Reliable Performance from 698 MHz to 2.7GHz (DC pass)
DC continuity on the center conductor for reliable operation
Multiple strike protection provides the current handling capability of 20KA
Replaceable gas capsules for easy maintenance
Outstanding VSWR and IM performance
Bi-Directional Protection
Reverse installation is possible without performance impact
Techwin is a professional spd factory, and we have a lot of experience. If you want to buy a smart surge protector and we are a good choice.
