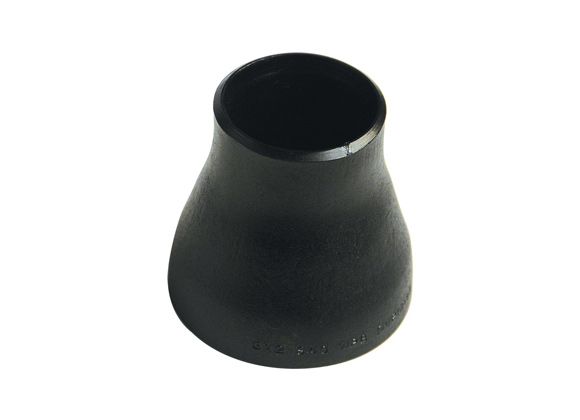

Concentric Reducer Black Paint Seamless Buttweld
Quantité : 1000000 pc Prix : USD0.5-USD3000.0
The Center point of the circle at both ends of the tube are on the same straight line are called concentric reducer. The Concentric reducer (reducing pipe) is a pipe fitting used for the diameter of the pipe. The commonly used forming process is reducing diameter pressing, expanding diameter pressing or reducing diameter plus expanding diameter pressing, and stamping forming can also be used for reducing diameter of certain specifications.
Con Reducer Black Paint Seamless Buttweld Dimensions
|
Size |
O.D at Bevel |
H |
Size |
O.D at Bevel |
H |
||
|
Large End |
Small End |
Large End |
Small End |
||||
|
3/4"x1/2" |
26.7 |
21.3 |
38 |
5x3 1/2" |
141.3 |
101.6 |
127 |
|
3/4"x3/8" |
26.7 |
17.3 |
38 |
5x3" |
141.3 |
88.9 |
127 |
|
1x3/4" |
33.4 |
16.7 |
51 |
5x2 1/2" |
141.3 |
73 |
127 |
|
1x1/2" |
33.4 |
21.3 |
51 |
5x2" |
141.3 |
60.3 |
127 |
|
1 1/4x1" |
42.2 |
33.4 |
51 |
6x5" |
168.3 |
141.3 |
140 |
|
1 1/4x3/4" |
42.2 |
26.7 |
51 |
6x4" |
168.3 |
114.3 |
140 |
|
1 1/4x1/2" |
42.2 |
21.3 |
51 |
6x3 1/2" |
168.3 |
101.6 |
140 |
|
1 1/2x1 1/4" |
48.3 |
42.2 |
64 |
6x3" |
168.3 |
88.9 |
140 |
|
1 1/2x1" |
48.3 |
33.4 |
64 |
6x2 1/2" |
168.3 |
73 |
140 |
|
1 1/2x3/4" |
48.3 |
26.7 |
64 |
8x6" |
219.1 |
168.3 |
152 |
|
1 1/2x1/2" |
48.3 |
21.3 |
64 |
8x5" |
219.1 |
141.3 |
152 |
|
2x1 1/2" |
60.3 |
48.3 |
76 |
8x4" |
219.1 |
114 |
152 |
|
2x1 1/4" |
60.3 |
42.2 |
76 |
8x3 1/2" |
219.1 |
101.6 |
152 |
|
2x1" |
60.3 |
33.4 |
76 |
10x8" |
273 |
219.1 |
178 |
|
2x3/4" |
60.3 |
26.7 |
76 |
10x6" |
273 |
168.3 |
178 |
|
2 1/2x2" |
73 |
60.3 |
89 |
10x5" |
273 |
141.3 |
178 |
|
2 1/2x1 1/2" |
73 |
48.3 |
89 |
10x4" |
273 |
114.3 |
178 |
|
2 1/2x1 1/4" |
73 |
42.2 |
89 |
12x10" |
323.8 |
273 |
203 |
|
2 1/2x1" |
73 |
33.4 |
89 |
12x8" |
323.8 |
219.1 |
203 |
|
3x2 1/2" |
88.9 |
73 |
89 |
12x6" |
323.8 |
168.3 |
203 |
|
3x2" |
88.9 |
60.3 |
89 |
12x5" |
323.8 |
141.3 |
203 |
|
3x1 1/2" |
88.9 |
48.3 |
89 |
14x12" |
355.6 |
323.8 |
330 |
|
3x1 1/4" |
88.9 |
42.2 |
89 |
14x10" |
355.6 |
273 |
330 |
|
3 1/2x3" |
101.6 |
88.9 |
102 |
14x8" |
355.6 |
219.1 |
330 |
|
3 1/2x2 1/2" |
101.6 |
73 |
102 |
14x6" |
355.6 |
168.3 |
330 |
|
3 1/2x2" |
101.6 |
60.3 |
102 |
16x14" |
406.4 |
355.6 |
356 |
|
3 1/2x1 1/2" |
101.6 |
48.3 |
102 |
16x12" |
406.4 |
323.8 |
356 |
|
3 1/2x1 1/4" |
101.6 |
42.2 |
102 |
16x10" |
406.4 |
273 |
356 |
|
4x3 1/2" |
114.3 |
101.6 |
102 |
16x8" |
406.4 |
219.1 |
356 |
|
4x3" |
114.3 |
88.9 |
102 |
18x16" |
457 |
406.4 |
381 |
|
4x2 1/2" |
114.3 |
73 |
102 |
18x14" |
457 |
355.6 |
381 |
|
4x2" |
114.3 |
60.3 |
102 |
18x12" |
457 |
323.8 |
381 |
|
4x1 1/2" |
114.3 |
48.3 |
102 |
18x10" |
457 |
273 |
381 |
|
5x4" |
141.3 |
114.3 |
127 |
|
|||
Concentric Reducer Black Paint Seamless/Welded VS Eccentric Reducer
1. Standard (Similarity):
Both concentric reducer black paint and eccentric reducer manufacture standard can be ASME B16.9,ASME B16.28,MSS SP-43,MSS SP-75 JIS B2311,DIN2605/2615/2616/2617,GOST 17375/17376/17378/17379,ISO
2 Wall Thickness (Similarity):
Both concentric reducer black paint and eccentric reducer wall thickness can be SCH10/10S, SCH20/the 20S, STD, SCH40/40S, XS,SCH80, XXS ETC.(for ANSI), SGP(for JIS)
3. Range of Applications (Similarity):
Size: 1/2"-48"(DN15-DN1200), or even bigger
Finishing: Black, Vanish, Oiled, Galvanized.
Connection type: Butt Welding.
4. Installation (Similarity):
Both concentric and eccentric reducers play a role in reducing diameter, and the connection mode is the same.
Concentric Reducer Black Paint Seamless Buttweld FAQs
What is the Difference Between Concentric and Eccentric Reducers?
A concentric reducer is symmetrical: both ends are aligned along the center.
An eccentric reducer is not symmetrical: ends are off center of one another.
What is the Surface Treatment for Carbon Steel Buttweld Fittings?
Painting, oiled, galvanized.
As one of the most professional China valve suppliers, Hebei Leading offers a large range of pipeline products, including industrial valves, flanges, pipe products. If you are facing trouble in sourcing a lot of different pipeline products, this website is a good place. We have a group of professional engineers who have 10 years plus experience.
If you want to know more kinds of flanged gate valves, please visit our website.
