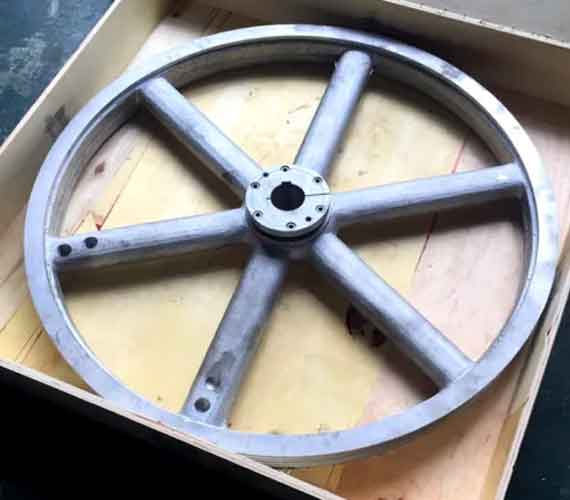

Cooling Tower Belt Reducer For BAC
The belt reducer for cooling tower is mainly used for the motor speed reduction of cooling tower, especially for the occasions with strict noise requirements, such as shopping malls, hotels, schools, enterprises and institutions. The belt has good elasticity, and can ease the impact and vibration in work. It runs smoothly without noise, and the belt slips on the pulley when the load is too large, so it can prevent other parts from being damaged and play a role of safety protection. Belt is an intermediate part. It can select the length according to the need in a certain range to adapt to the working conditions with large center distance.
Parameter Of Cooling Tower Belt Reducer For BAC
|
Model |
Nos.of |
H |
H1 |
H2 |
H3 |
Ø1 |
Ø2 |
Ø3 |
Ø4 |
N-ØD |
K |
T |
|
NBR-5 |
2 |
45 |
50 |
175 |
76 |
355 |
300 |
263 |
34 |
4-Ø13 |
37 |
8 |
|
NBR-6 |
3 |
65 |
60 |
225 |
105 |
456 |
348 |
300 |
38 |
4-Ø14 |
41 |
8 |
|
NBR-8 |
4 |
85 |
62 |
265 |
120 |
456 |
428 |
390 |
50 |
6-Ø16 |
53 |
12 |
|
NBR-10 |
4 |
85 |
62 |
310 |
135 |
608 |
500 |
450 |
50 |
4-Ø16 |
53 |
12 |
|
NBR-12 |
5 |
105 |
62 |
310 |
143 |
660 |
500 |
450 |
60 |
4-Ø16 |
63 |
12 |
|
NBR-14 |
6 |
125 |
62 |
320 |
153 |
660 |
500 |
450 |
75 |
6-Ø16 |
79.5 |
20 |
Advantages Of Cooling Tower Belt Reducer For BAC
BAC belt reducer has stable transmission, low noise and small vibration; The driving structure of belt pulley is simple and easy to adjust. The belt pulley drive has the function of overload protection; The adjustment range of the center distance between the two shafts of the belt pulley drive is large.
Contact us to buy cooling tower or know the cooling tower application.
