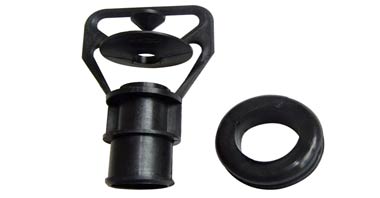

Cooling Tower Spray Nozzle
Cooling tower nozzle is the component of water distribution in the cooling tower, which is made of ABS by one-time injection molding. Socket connection, firm connection, easy disassembly, not easy to block, nozzle water distribution is uniform, using cross water distribution method, hot water evenly distributed to the top of packing, can achieve full heat dissipation effect, can be widely used in circular and square counter flow tower.
As a professional manufacturer of industrial cooling towers llc, we offer different types of water distribution spray nozzles for cooling towers. You can choose what you need from the following products.
Advantage of Cooling Tower Spray Nozzle
High strength, light weight, low water pressure, low spray height, uniform water distribution, good splash effect, convenient installation and maintenance, adjustable water volume, good heat dissipation effect, especially suitable for cooling water. Even water distribution, low working pressure (nozzle outlet working pressure is only 0.6mH2O), large pressure range, not easy to block. Because of its special designed locking and anti loosing device, it can be firmly connected with the water distribution pipe without falling off, which can ensure the long-term safe operation of the water distribution system. Under normal use conditions, the service life of the nozzle is 20 years.
Working Principle of Cooling Tower Nozzle
When the hot water flows through the spray nozzle, the swirling flow is generated under the action of the swirling plate in the nozzle, and the hot water is sprayed upward, and after the heat exchange with the air, the cold water falls into the pool, and the hot air is discharged into the atmosphere by the tower top duct after water removal by the water collector. It rotates in the cavity and rotates downward to eject from the lower nozzle. After the water is ejected, it forms an umbrella shaped rotating water body, impacts the splash strip and splash blade, and splashes into evenly distributed mist like small water droplets, falling to the top surface of the filler.
