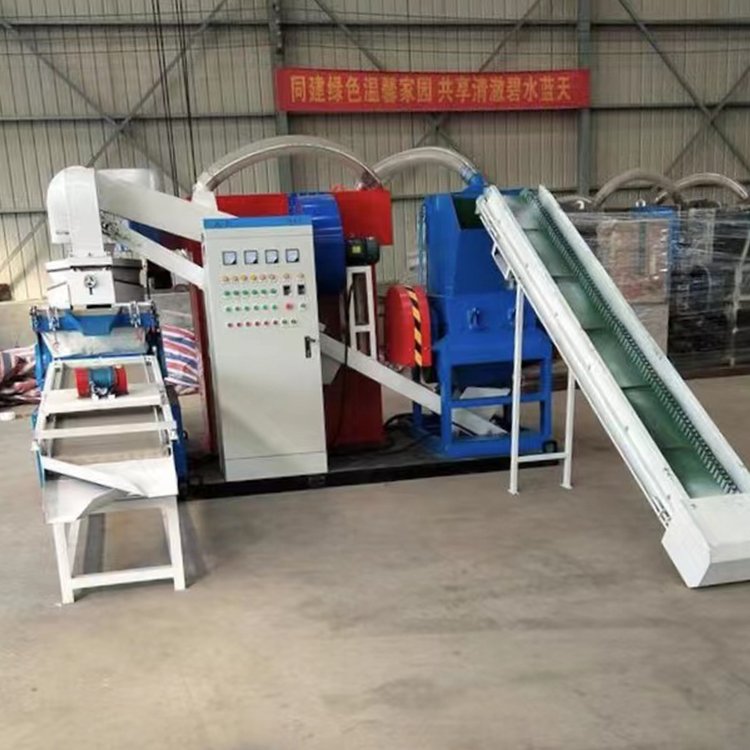

Copper Wire Granulator Cable Recycling Machine Copper Plastic Separation Machine
Copper Wire Granulator Cable Recycling Machine Copper Plastic Separation Machine
It is a production line for recycling waste copper wires and cables to obtain copper particles and plastic particles. It is mainly used to recycle various waste cables, separate raw materials into fine copper meters and PVC, and apply to wire diameters ranging from 0.3 mm to 20 mm, such as automobile wires, car bottom wires, motorcycle wires, computer wires and communication wires, etc.
Process waste wire and cable into copper and plastic pellets. Copper and plastic are separated, and the separation efficiency can reach 99%. Copper pellets can be sold directly or further refined. Copper can be refined into cathode copper with a purity of over 99.99%. Plastic particles are generally PVC or rubber materials, and can also be sold directly.
Raw Material
Raw Material: automobile wires, car bottom wires, motorcycle wires, computer wires and communication wires, etc.
Final Product
Final Products: Copper Powder And Plastic Powder
Work Flow
First, a shredder is used to shred the material, which is about 3cm long, and then the material is further shredded by a knife pulverizer to peel off plastic and copper. The pulverized materials enter the high-precision airflow sorting machine through the wind conveying system for sorting to obtain plastic and copper. The unsorted plastics enter the electrostatic sorting machine for secondary sorting to ensure the reuse rate of copper. At the same time, pulse dust collection equipment is used to effectively control dust overflow, and the dust removal efficiency is as high as 99% to ensure that there is no dust pollution in the production process.
Product Paramenters
|
Model
|
Capacity(KG/H)
|
Power(kw)
|
Size(mm)
|
Weight(KG)
|
|
YT-TMJ-200
|
100-200
|
30
|
2400*1800*2800
|
2390
|
|
YT-TMJ-500
|
300-500
|
53
|
6000*6000*4600
|
4790
|
|
YT-TMJ-1000
|
800-1000
|
154
|
20000*12000*4600
|
12000
|
Our Advantages
1. Compact structure, beautiful appearance, reasonable layout and convenient installation.
2. Using PLC control, the equipment is uniformly fed, intelligent operation, automatic alarm function, easy to operate, and the equipment runs stably.
3. The shredder adopts a high-hardness main shaft, which makes the shredder more impactful when carrying objects. The tearing type is adopted, which is composed of a micro cutter head and a cylindrical cutter shank, which greatly reduces the investment of wearing parts.
4. The grinding machine, sorting equipment and dust collecting equipment are combined with a platform, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.
5. The rotor of the grinding machine adopts alternate cutter shafts, which makes the grinding machine have higher production efficiency, lower noise and more stable operation.
6. This equipment adopts the combination of airflow sorting equipment and high-voltage electrostatic equipment, so that the sorting rate can reach more than 99%. 7. The bag dust collection equipment effectively controls dust overflow, and the dust removal efficiency is as high as 99%, which meets the requirements of the national Hamburg "Comprehensive Emission Standard of Air Pollutants" GB16297-1996, without secondary pollution. 8. The blade and screen of the wearing parts are made of special wear-resistant and high-toughness alloy material, which improves the service life and reduces the production cost. 9.The recycling system re-shreds the raw material to ensure the complete separation of copper and plastic.
