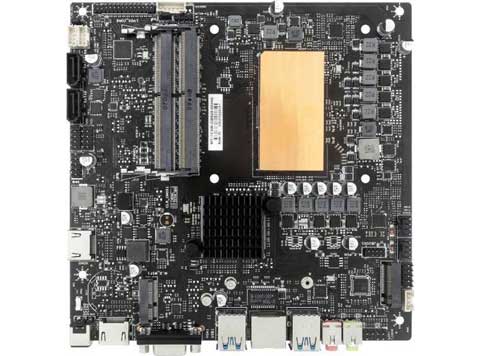

CORE i7 Motherboard 8706G/8809G

JWIPC 8706G/8809G consumer motherboard adopts intel core i7 motherboard 8706G/8809G processor, core i7 board is based on MINI ITX standard version design. Dual-channel DDR4 memory, 4 USB3.0, 2 HDMI and VGA three display output, all these equipments make the 8706G/8809G THIN MINI ITX motherboard the best choice for your commercial display or all-in-one PC.

Intel Core i7 8706G

2 x SO-DIMM DDR4, Max 64 GB

M.2 SSD, SATA/NVME Mode

4 x USB3.0, RJ45

2 x HDMI + VGA

HIGHLIGHTS OF i7 8th gen motherboard 8706G/8809G

Thin Mini-ITX is 170mm×170mm×8L. CORE i7 Motherbaord 8706G/8809G installed Intel H110/Q270 processor, Realtek ALC897 Audio, Intel i219V Network. Consumer motherboard's CPU is Intel Core i7 8706G, Quad-core 8 thread 3.1GHz (4.1GHz), RadeonPro WX Vega M GL graphics (4G), RadeonRX Vega M GL graphics (4G). Memory is DDR4 2400MHz Max: 64G and 2×DDR4 SO-DIMM Memory Slot. Expansion: 1×M.2 2230 (Support WIFI/BT) and 1×M.2 2280 (Support SATA/NVME mode). I/O: 1×DC Power input (19V), 1×HDMI, 1×VGA, 1×RJ45, 4×USB3.0, 1×OUT, 1×MIC. Plug-in: 1×LVDS(30Pin 2.0mm), 1×LCD_VOL_SEL Display Voltage Jump Cap (5V/12V), 1×Inverter (8PIN), 1×BKL_VOL Backlight Voltage Jump Cap (12V/19V), 2×SATA3.0, 2×SATA Power, 2×double USB2.0 pins, 1×FPANEL, 1×Audio, 1×Speak, 1×4 PIN CPU Fan, 1×4 PIN SYS Fan, 1×JBAT pin, 1×JBIOS pin. Mini motherboard designed with 128M flash ROM, AMI UEFI BIOS, PC Health, WOL.

Jwipc is a professional iot hardware company, we provide iot hardware design, all in one computer, switch computer, motherboard for intel 8th gen, motherboard intel 8th gen, 8th generation motherboard, intel 8th gen motherboard, etc. For more information, please feel free to contact us!

Localisation : 13/F, Haisong Building B,Tairan 9th Rd,Futian District,Shenzhen, Guang Dong Province,PRC, 518000 Shenzhen,
Personne à contacter : Ding Meimei, 86 0755 23981883
