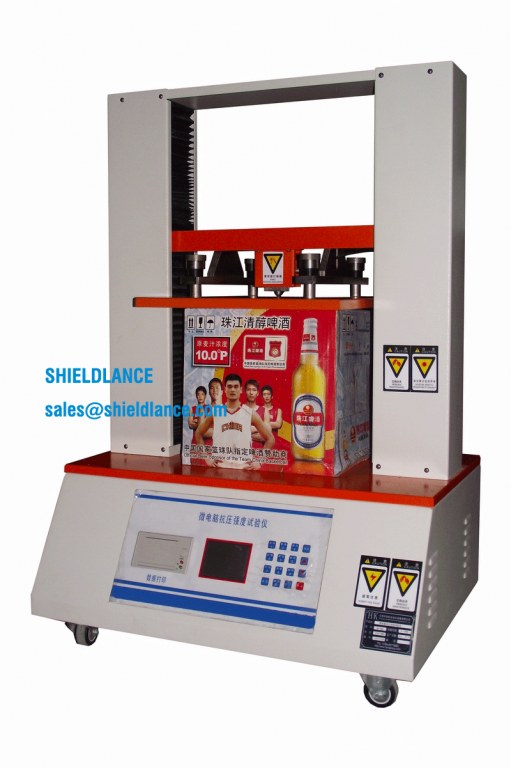

Corrugated box compression and stacking strength tester
Quantité : 100000 Prix : 500 000,00 €
http://www.shieldlance.com/
Product Description
Corrugated box compression and stacking strength tester
compression tester
Application
Corrugated box compression and stacking strength tester are used to test box compression strength and stacking strenth ,it can be used test small size box ,middle size box ,large size box ,and so on .
Standard
GB/T 4857.4、ISO 12048 、ISO2872、 ISO2874、QB/T 1048
Parameter
Measuring range :(25~5000)/(50~10000)(100~30000)N
(100~50000)N ,more other can be choosed
Measuring size:(600*400*600)mm/(800*600*800)mm
(800*800*1000)mm/(1000*1000*1200)/(1200*1200*1200)mm。
Accoracy:0.1N
Force accoracy:less then ±1%
Deflection error:≤±1mm
Force range:0.4%~100%FS
Parallelism:≤1mm
Test speed:(10±3) mm/min(:5±1mm/min)
Return speed:90mm/min
Unit interchange:N/Lbf /kgf interchange
Control interface:display withcurve
Testing function:compression strength、static compression strength、stacking strength
Printer:thermosensitive printer
Environment:temperature(20±10°C),moisture <85%</p>
Dimension:(L×b×h,mm):all size
Weight:About 300kg
