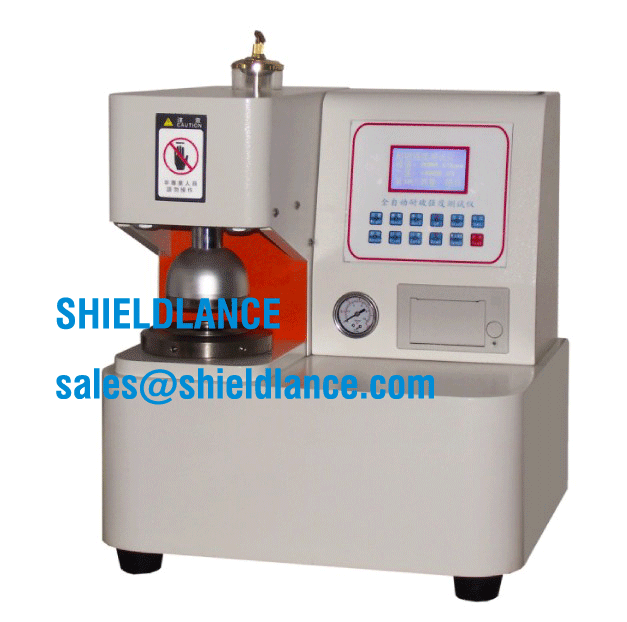

Corrugated fibreboard bursting strength tester
Quantité : 1000000 Prix : 4 500 000,00 €
http://www.shieldlance.com/
Product Description
Corrugated fibreboard bursting strength tester
bursting strength tester
Application
Corrugated board bursting tester is used to test bursting strength of corrugated board and box .It can also be applying to test case board, kraft paper , paperboard,corrugated paper grey paper,it is used for corrugated board manufacture company, university,quality supervision,and so on .
Standard
GB/T 6545、QB/T 1057 、GB 10739
Parameter (with curve display)
Measuring range:50~5600kpa
Accracy :≤±0.5%
Resolution :0.01kpa
Concentricity:≤0.25mm
Deformation erro:≤1mm
Film convex strength:(10±0.2)mm/(170~220)kPa
Oil speed:175±5ml/min
Plate diameter:Uper:31.5±0.5mm ,Under:31.5±0.5mm
Interface:3.5in display (with curve display)
Clamp force:400kpa~1200kpa (Adjustable)
Unit interchange:Kg/cm2、kpa、lbf/in2
Ptinter:thermosensitive printer
Environment:(20±10)℃,<85%
Dimension:330*400*420mm
Weight:60kg
Parameter
Measuring range:50~5600kpa
Accracy :≤±0.5%
Resolution :0.01kpa
Concentricity:≤0.25mm
Film convex strength:(10±0.2)mm/(170~220)kPa
Oil speed:95±5ml/min
Plate diameter:Uper:31.5±0.1mm ,Under:31.5±0.1mm
Interface:3.2in display
Clamp force:400kpa~1200kpa (Adjustable)
Unit interchange:Kg/cm2、kpa、lbf/in2
Ptinter:thermosensitive printer
Environment:(20±10)℃,<85%
Dimension:300*350*450mm
Weight:45kg
Personne à contacter : Yunlong Li, 0086 20 82209969
