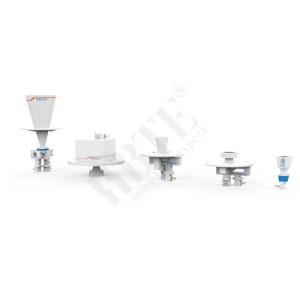

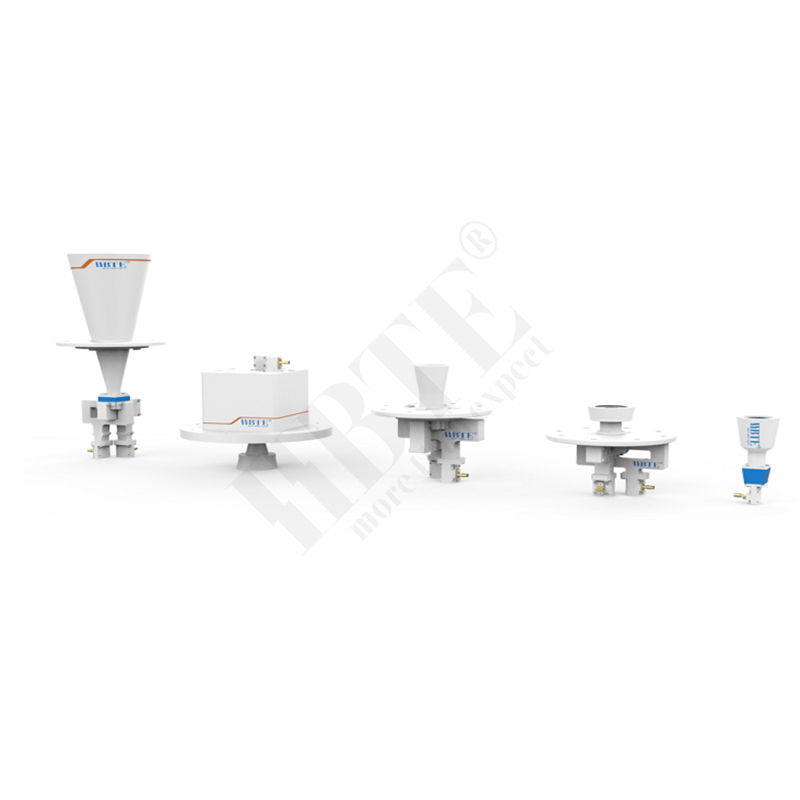

Corrugated Horn Antenna
A corrugated horn antenna is formed by embedding a corrugated slot in the inner wall of the horn antenna. HBTE corrugated antenna has the characteristics of high gain, small reflection and wide frequency band. It is the suitable irradiator for all kinds of high-performance antennas and become the main type of irradiator for various microwave antennas.Its working frequency from 22Ghz to 40Ghz and its standard gain from 10 dB to 20dB. Corrugated horn antenna provides monopolarization and dual polarization.
Corrugated Horn Antenna
|
NO |
Model |
Frequency (GHz) |
Polarization |
Method Gain (dB) Typical value |
Standing Wave |
Port Isolation (dB) |
Output Interf |
ace Size (mm) |
Withstand Power (W)
|
|
1 |
DCH-22-29-D10 |
22-29 |
Dual polarization |
10 |
<2</p> |
>35 |
2.92-K |
140*φ98 |
20 |
|
2 |
DCH-22-29-D20 |
22-29 |
Dual polarization |
20 |
<2</p> |
>30 |
2.92-K |
250*φ98 |
20 |
|
3 |
DH-24-42-D14 |
24-42 |
Dual polarization |
14 |
<2</p> |
>40 |
2.4-K |
144.4*φ130 |
20 |
|
4 |
DCH-24-44-D14 |
24-44 |
Dual polarization |
14 |
<2</p> |
>22 |
2.4-K |
98.6*φ98 |
20 |
|
5 |
SH-26.5-40-D15 |
26.5-40 |
Single polarization |
15 |
<2</p> |
/ |
2.92-K |
93.8*φ30.6 |
20 |
Personne à contacter : Tech HBTE , 021 59830621
