Cortex-A8 S5PV210 core board/motherboard/mainboard
Quantité : 1000

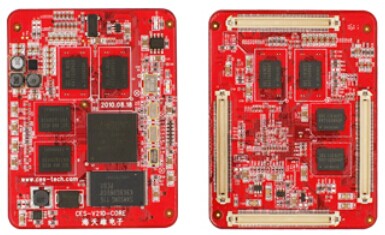

Samsung ARM Cortex-A8 S5PV210 Module
Main Features:
Samsung ARM Cortex™-A8 S5PV210 1GHz high performance processor
Onboard DDR2 1GB memory /1GB Nand flash
Support wide range power input 5V-12V
Support 2D/3D Graphics Acceleration, MPEG-4/H.263/H.264 encoding and decoding up to 1080p@30fps
Support full HD 1080p video decode and HD 1080 video encode hardware engine
Support 10M/100M Ethernet
Support USB2.0, USB OTG2.0, RS232 UART, SD CARE, GPIO, Camera
Support Android4.0 OS, Linux OS, WindowsCE6.0/7.0 OS
Optional thermal solution
Product Specification:
Module size: 58.7*76.5mm
CPU: Samsung ARM Cortex™-A8 S5PV210
Memory: 1GB DDR2/1GB Nand flash
PMIC: MAXIM MAX8698C chip
Graphics: 1 HDMI1.3, 1 VGA, 1 LCD
Ethernet: : 1 10M/100Mbps
Connector No. J1, J2, J3, J4
Full pins: 496
RTC: yes
I/O: USB HOST, USB OTG, SD/SDIO/HS-MMC interface, RS232 UART, TV OUT, TV IN, Audio, keypad, GPIO, SPDIF, SPI, I2C,I2S
Power Supply Voltage: 5V~12V
Environment: Operational Temperature: 0~60C/-20~85C
Operating System: Android4.0, Linux3.2.0,WindowsCE6.0
