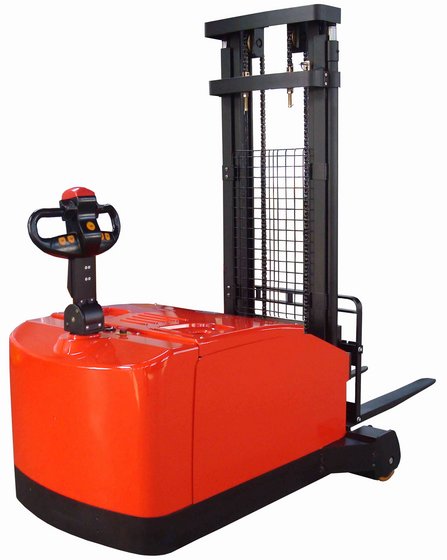

Counterbalance stacker
Quantité : 20 Prix : 1,00 €
| Model designation | CPD10-SE | |
| Drive unit | Battery | |
| Operator type | Walkie | |
| Load capacity | Q (kg) | 1000 |
| Service weight (Incl. battery) | kg | 1600 |
| Tyre type | PU/PU | |
| Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 3/6 |
| Lift height | h3 (mm) | 3000 |
| Fork height, lowered | h13 (mm) | 55 |
| Overall length | l1 (mm) | 2695 |
| Overall width | b1/ b2 (mm) | 1250 |
| Fork dimensions | s/ e/ l (mm) | 40/100/1070 |
| Fork carriage width | b3 (mm) | 812 |
| Outside fork width, minimum/ maximum | b5 (mm) | 200/ 812 |
| Ground clearance, laden, below mast | m1 (mm) | 50 |
| Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2960 |
| Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2955 |
| Outer turning radius | Wa (mm) | 1450 |
| Travel speed, laden/ unladen | km/ h | 3/5 |
| Lifting speed, laden/ unladen | m/ s | 0.13 / 0.23 |
| Lowering speed, laden/ unladen | m/ s | 0.13 / 0.23 |
| Maximum gradeability, laden/ unladen S2 5 min. | % | 5/7 |
| Drive motor rating S2 60 min. | kW | 1.5 |
| Lift motor rating at S3 15% | kW | 3 |
| Battery voltage/ rated capacity (5h) | V/ Ah | 24 /270 |
| Battery weight (with box) | kg | 235 |
| Type of drive control | AC | |
| Manufacturer | CURTIS | |
| Steering | Power steering |
Personne à contacter : Xu Betty, 0086 18321022308
