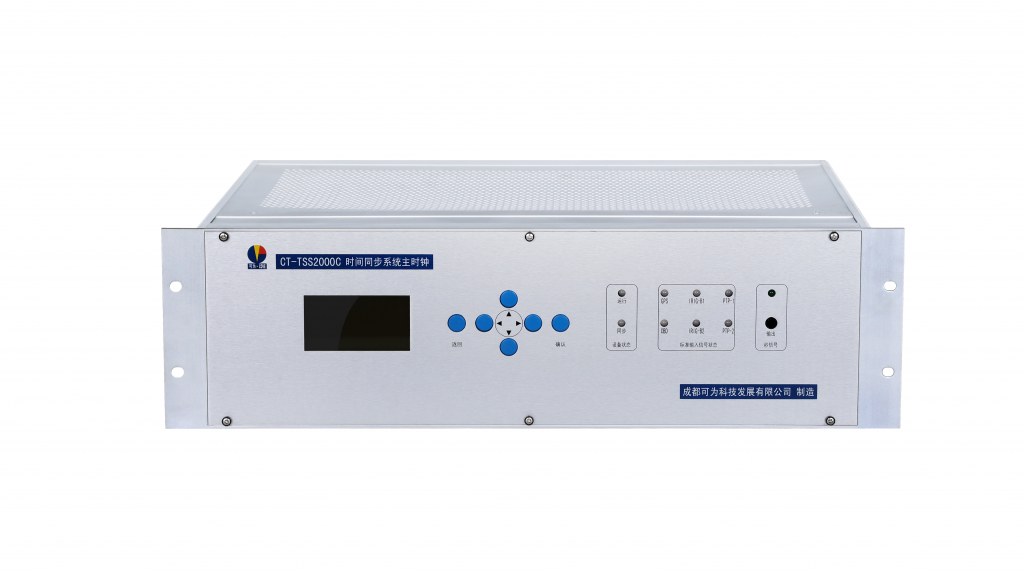

COVE CT-TSS2000C Time synchronization system
The CT-TSS System 2000C is designed for the Smart Grid with the Precision Time Protocol (IEEE1588) supported. The CT-TSS2000C system includes single or dual CT-TSS2000C grandmasters due to the custom needs, with each grandmaster consisting mainly of a GPS receiver, BD receiver along with the IRIG-B inputs, and optional CT-TSS2000C Time Code Distributors delivering multiple formats of time code to a wide range of clients in a smart substation. Rubidium oscillator or OCXO is used as a highly stable time base to provide reliable holdover in case of any interruption.
- Fully redundant time sources including GPS, BD, IRIG-B and optional PTP
- Redundant Dual power supplies
- IEC61850, IEC61850-5-104 supported, sharing devices info
- Highly stable time base in highly accuracy
- Simple LCD display, easy to read and control
- Easy to be configured to distribute signals through multiple formats
- Excellent holdover performance and signal quality
- Error reporting, power fail alarm and self monitoring
- 19"/ 3U rack mount
|
Power: |
AC: |
190~260V, 47 to 52 Hz |
|
|
DC: |
190~260V |
|
|
Power consumption: |
≤25 Watts |
|
|
|
|
|
Environmental: |
Operating Temperature: |
-5 °C ~+45 °C |
|
|
Storage Temperature: |
-30 to +80°C |
|
|
Humidity: |
to 95% non-condensing |
|
|
Atmospheric Pressure: |
50 ~ 108kPa |
|
|
|
|
|
GPS: |
Frequency: |
1575.42 MHz (L1 signal) |
|
|
Receiver sensitivity: |
Acquisition: <-160dBW, Tracking: <-163 dBW</span> |
|
|
Timing Accuracy: |
±1 μs to UTC |
|
|
3~12 channel GPS Tracked |
|
|
|
|
|
|
BD: |
Frequency: |
1561.098MHz |
|
|
Tracking sensitivity: |
-127.6dBW |
|
|
Timing Accuracy: |
≤100ns to UTC |
|
|
|
|
|
Holdover Performance: |
Rubidium oscillator: |
< 1μs/day (up to 24hs) |
|
|
OCXO: |
<1</span>μs/h (up to 24hs) |
|
|
|
|
|
Device reliability: |
Mean time to failure: |
≥50000h |
|
|
Mean time to repair: |
≤0.5h |
|
|
Service life: |
≥15years |
Order info
|
Time Source |
GPS |
BD |
IRIG-B |
PTP |
|
Grandmaster |
1, Optional |
1, Optional |
2, Optional |
2, Optional |
|
Time Code Distributor |
N/A |
N/A |
2 |
2 |
|
Mechanical |
Size: 435mm(W)×300mm(L)×134mm(H), Wight: 4Kg |
|||
|
Output Module |
PTP/NTP |
AM IRIG-B |
DCLS IRIG-B |
Pulse |
RS232 RS422 |
|
Option |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Signal No./Card |
2 |
8 |
6 |
8 |
8 |
SCOPE OF SUPPLY
• 1× CT- TSS2000C GPS based time synchronization system
• 1×GPS antenna in waterproof housing with 30m low loss coax cable
• 1×Power cable
• 2×Operating instruction handbook
• Certification
Note that, if all the products couldn't satisfy please feel free to contact us. We are very pleased to provide custom-made ones especially for you.
Lifetime support,either by email or phone.
