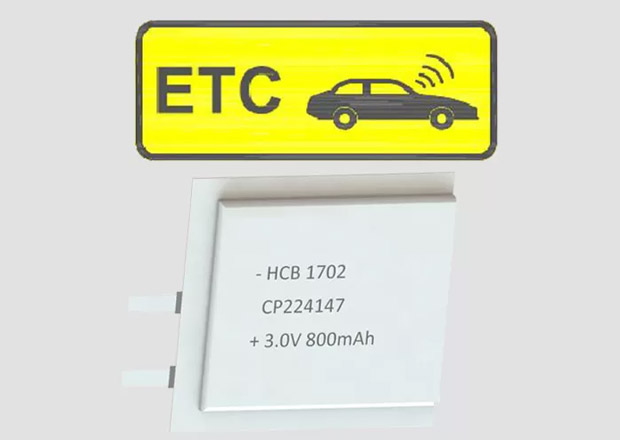

CP224147 Lithium Pouch Cell
Quantité : Two millio Prix : $0.1- $100
CP224147 Primary Lithium 800mAh Flat Battery Cell for electronic shelf lables. Outdoor Wireless GPS Tracking Sensor Devices Required Different Dimensions 3V Li-MnO2 Pouch Cell, Soft Battery Non-Passivation Primary Lithium Thionyl Chloride Batteries.
Details of CP224147 Lithium Pouch Cell
Product Details of CP224147 Lithium Primary Cell
Place of Origin |
China |
Brand Name |
HCB |
Certification |
RoHS/UN/CE/UL |
Model Number |
CP224147 |
Payment & Shipping Terms Details of CP224147 Lithium Pouch Cell
Minimum Order Quantity |
1K pcs |
Price |
Negotiable |
Packaging Details |
Special design for Air/Sea/Courier transportation |
Delivery Time |
5 workdays |
Payment Terms |
T/T, L/C, D/P, D/A, Western Union, MoneyGram |
Supply Ability |
Two million units per month |
Advantage of CP224147 Lithium Pouch Cell
High voltage response, stable during most of the lifetime of the application
Energy density for lithium pouch battery up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)
Specification of CP224147 Lithium Pouch Cell
Electrical characteristics |
Open circuit voltage (at 23±2°C) |
≥3.10V |
Nominal capacity |
800mAh |
|
(At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) |
||
Maximum continuous current |
200mA |
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.) |
||
Maximum pulse discharge current |
400mA |
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. ) |
||
Storage (recommended) |
≤+30°C |
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
Operating temperature range |
-40°C~+70°C |
|
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) |
||
Physical characteristics |
Width |
42.0±1.0mm |
Height |
48.0±1.0mm |
|
Thickness |
2.2±0.1mm |
|
Typical weight |
6.5g |
|
Li metal content |
0.26g |
If you want to know more kinds of hcb batteries, please visit our website.
