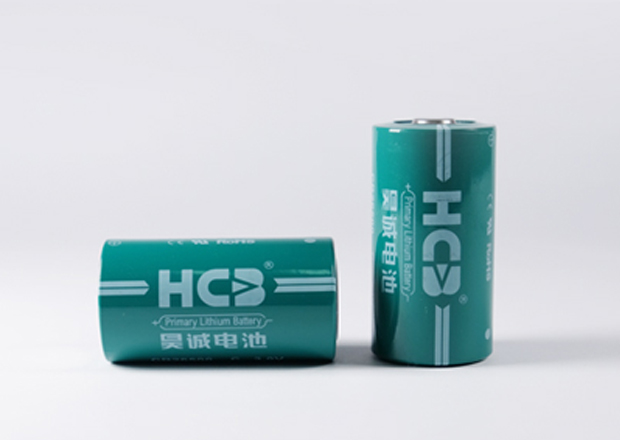

CR26500 Li-MnO2 Cylindrical Battery
Low Self Discharge Stainless Steel Cellpacking Multiple Safety Designed Li-MnO2 Battery Lithium Cylindrical CR26500 Battery 5000mAh C Model Spiral 3V for Medical Devices, metering, Smart RFID Devices, Communication Equipments, Security System, UN38.3, UL CE RoHS has passed.
Li-MnO2 Cylindrical CR26500 Battery Details
Product Details of Li-MnO2 Cylindrical CR26500 Battery
|
Place of Origin |
China |
|
Brand Name |
HCB |
|
Certification |
UN/CE/UL/RoHS |
|
Model Number |
CR26500/C Model/5000mAh |
Payment & Shipping Terms Details of Li-MnO2 Cylindrical CR26500 Battery
|
Minimum Order Quantity |
1K pcs |
|
Price |
Negotiable |
|
Packaging Details |
Special design for Air/Sea/Courier transportation |
|
Delivery Time |
5 workdays |
|
Payment Terms |
T/T, L/C, D/A, D/P, Western Union, MoneyGram |
|
Supply Ability |
Two million units per month |
Li-MnO2 Cylindrical CR26500 Battery Specifications
|
characteristics |
Open circuit voltage (at 23±2°C) |
≥3.10V |
|
Nominal capacity |
5000mAh |
|
|
(At +25°C, the battery is discharged at a continuous current of 10mA until the voltage reaches cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) |
||
|
Maximum continuous current |
2000mA |
|
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.) |
||
|
Maximum pulse discharge current |
3000mA |
|
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. ) |
||
|
Storage (recommended) |
≤+30°C |
|
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
|
Operating temperature range |
-40°C~+85°C |
|
|
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) |
||
|
Physical characteristics |
Width |
25.5±0.2mm |
|
Height |
49.5±0.5mm |
|
|
Typical weight |
62.0g |
|
|
Li metal content |
1.64g |
|
CR26500 Battery Applications
Internet of Things
Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.
Monitoring
The animal health monitoring system, forest fire alert, smart irrigation system, etc.
Medical Devices
Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
Use Warning of Li-MnO2 Cylindrical CR26500 Battery
This CR26500 Battery is a non-rechargeable battery.
DO NOT CHARGE THE BATTERY!
Do not use if the CR26500 battery casing is damaged.
Please discharge the battery for a few minutes with 100mA.
Don't use different models of CR26500 battery in series.
The CR26500 battery should be stored in a dry environment.
Do not continue to use the CR26500 battery if abnormal heat release or leakage occurs.
Please read the manual before using our CR26500 battery.
Keep out reach of children. If swallowed, contact a physician at once.
Do not reverse the Li-MnO2 primary lithium battery, follow strictly the signs + and – shown on batteries and appliances.
If CR26500 batteries are put in the wrong way they are bound to become hot very quickly. This can lead to gas or toxic material leakage and/or to a violent rupture.
Do not incinerate of mutilate, may burst or release toxic material.
Do not deform batteries. CR26500 batteries are not to be crushed, drilled into or damaged in any other way. This can lead to toxic material or gas leakage and/or violent rupture.
Do not throw the battery into water. This can cause explosion.
Do not charge primary batteries. This can cause gas leakage and will lead to violent rupture and/or fire.
Battery compartment should provide sufficient space for battery to expand in case of abuse.
Battery disposal method should be in accordance with local and state regulations.
CR26500 Battery Technical Drawings
As one of primary lithium battery manufacturers, we can offer different kinds of related products for sale, if you are interested, please leave us a message.
