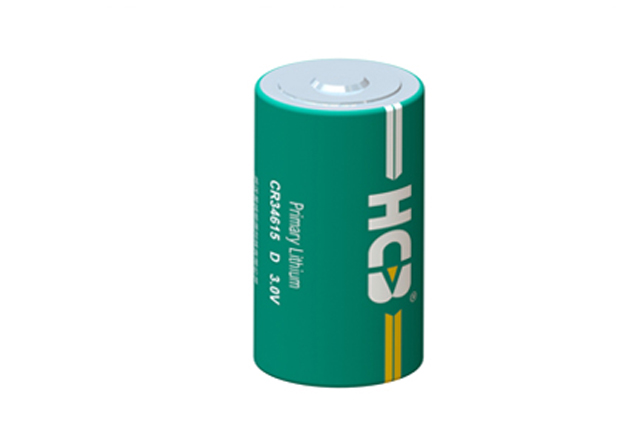

CR34615 Li-MnO2 Battery 3V

Place of Origin

China

Brand Name

HCB

Certification

RoHS/UN/CE/UL

Model Number

CR34615

Minimum Order Quantity

1K pcs

Price

Negotiable

Packaging Details

Special design for Air/Sea/Courier transportation

Delivery Time

35 workdays

Payment Terms

T/T, L/C

Supply Ability

Two million units per month

characteristics

Open circuit voltage (at 23±2°C)

≥3.10V

Nominal capacity

12000mAh

(At +25°C, the battery is discharged at a continuous current of 10mA until the voltage reaches a cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)

Maximum continuous current

2000mA

(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)

Maximum pulse discharge current

3000mA

(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )

Storage (recommended)

≤+30°C

(For more severe conditions, consult HCB)

≤75%RH

Operating temperature range

-40°C~+85°C

(Operation above ambient temperature may lead to reduced

capacity and lower voltage readings at the beginning of pulses, consult HCB.)

Physical characteristics

Width

32.5±0.2mm

Height

61.5±0.5mm

Typical weight

125.0g

Li metal content

4.00g
