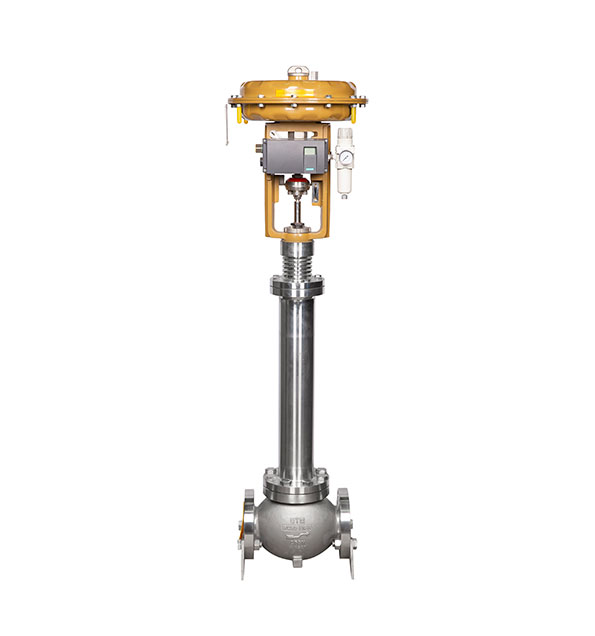

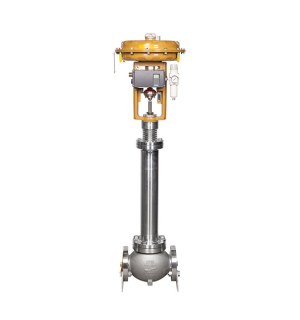

Cryogenic Control Valve
G115/G155 Series
China Cryogenic Control Valve
Cryogenic flow control valve is suitable for the adjustment of the medium (such as liquid oxygen, liquid nitrogen, etc.) under the low temperature and strong state of -60～-250℃. To ensure the accuracy of adjustment, a positioner must be used. Pneumatic low temperature is composed of a pneumatic membrane actuator and low temperature resistant single and double seat valve. The signal pressure from the regulator is input into the air chamber of the pneumatic membrane actuator to generate thrust, and the cryogenic flow control valve core is driven by the connecting rod. The change of the valve core position in valve control systems changes the flow cross-sectional area of the cryogenic control valve to realize the adjustment of the medium flow.
Technical Data Sheet of G115 and G155 Series Cryogenic Control Valve
Weights and Dimensions of G115 Series Cryogenic Control Valve
Weights and Dimensions
|
G115 series |
dn ANSI NPS |
150 6" |
200 |
250 |
300 |
350 |
400 |
|
|
8M |
10" |
12" |
14" |
16" |
||||
|
GL PN10-PN40 |
480 |
600 |
730 |
850 |
980 |
1100 |
||
|
GL Class 150 RF |
451 |
543 |
673 |
737 |
889 |
1016 |
||
|
GL Class 150 RTJ |
463.5 |
556 |
- |
- |
|
|
||
|
GL Class 300 RF |
473 |
568 |
708 |
775 |
927 |
1057 |
||
|
GL Class 300 RTJ |
489 |
584 |
|
|
|
|
||
|
DEK5 |
On request |
|||||||
|
GD |
190 |
240 |
305 |
335 |
395 |
445 |
||
|
Actuator Type Ul/UTA |
0U |
UTIII |
400 |
|
||||
|
UTA |
598 |
|||||||
|
UH |
UTIII |
618 |
|
|||||
|
UTA |
1100 |
1363 |
1580 |
|||||
|
UHV |
UTIII |
888 |
|
|||||
|
Weight* ca. kg |
UTIII |
200 |
260 |
|
||||
|
UTA |
340 |
400 |
460 |
760 |
850 |
1500 |
||
As one of control valve manufacturers china in china, we will do our best to meet all the needs of customers.
