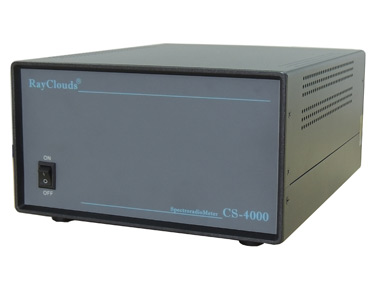

CS-Series Spectrometer
Quantité : 1 Prix : 200 000,00 €
RayClouds has spectrometer for sale! CS-Series spectrometer used in R&D, which adapt HAMAMATSU TE-cooled back-illuminated CCD detector, the second is symmetrical low-stray optical path design. Compared with general spectrometer, CS-Series with high sensitivity, low stray light, wide dynamic range, high repeatability stability and so on. It is suitable for company's R&D, national local photoelectric laboratory and professional testing organizations.
CS-Series Spectrometer Characteristic
Extremely Low Stray Light
Combined with the latest optical path design technology to achieve the perfect match between the optical path and the sensor, at the same time, combined with the special FCT technology and the NIST stray light calibration technology to make the stray light levels lower than the original more than an order of magnitude.
High Sensitivity
With HAMAMATSU detector, back-illuminated CCD sensor, which make CS-6500 internal TE cooling, BINNING and other excellent features.
CS-Series Spectrometer Specification
|
Model |
CS-6500/CS-4000 |
|
|
Spectral range |
380nm ～ 780nm |
|
|
Spectral bandwidth |
2nm |
|
|
Spectral interval |
1nm |
|
|
Wavelength accuracy |
0.2nm |
|
|
linear |
0.5% |
|
|
Repeatability |
0.2% |
|
|
Stray light |
1.00E-04 |
|
|
SNR |
1000: 1 |
|
|
Detector |
HAMAMATSU Back cooling CCD Detector |
|
|
Photosensitive unit |
1024chx58ch |
|
|
Pixel size |
24μmx24μm |
|
|
Cooling temperature |
-5 ℃ |
|
|
Color coordinate accuracy |
± 0.0015 |
|
|
Color coordinate repeatability |
± 0.0003 |
|
|
Electrical parameter |
AD resolution |
16bit |
|
Interface |
USB2.0 |
|
|
Power |
AC110V～240V（50Hz/60Hz） |
|
|
Software performance |
Expose time |
6ms～2000ms，1ms interval |
|
Operation system |
Windows: XP, 7 (32-bit/64-bit) |
|
