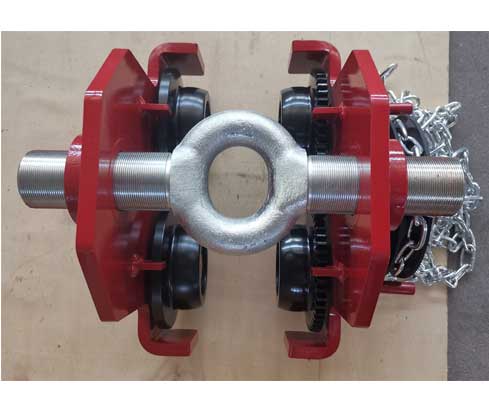

CT620 2 Ton Hoist Trolley

Featured with quick installation and low headroom, TITANSUHE's GCT/GCL 620 series chain hoist dolly has many advantages compared with a regular hoist. The threaded shaft can be easily screwed in or screwed out to adjust the length width. With the hooking eye design on the shaft instead of additional bail hanging on the shaft, the overall height is reduced and headroom increased.

Quick View of GCT620 2 Ton Hoist Trolley

·

Model No.: GCT 620 for push beam trolley, GCL620 for geared beam trolley

·

Capacity: 3ton, other capacities available from 0.5ton to 5ton

·

Mini. Flange width:66mm

Max. Flange Width: 220mm

·

Hand Chain Size: 5x25mm, for geared beam trolley only

·

Color: Powder painting in orange, other colors are available upon request

·

Packing: Kraft box for size 0.5t up to 5t and a wooden box for 10t and above

·

Features and Advantages of GCT620 2 Ton Trolley

·

Fast and Easy Installation and Maintenance-Threaded main shaft provide fast installation and maintenance.

·

Quick Flange Width Adjustment-By simply screwing in and screwing out the main shaft to quickly adjustment of the flange width.

·

Low Headroom for Confined Space-Eye type shaft reduces the overall height and gives more headroom for operation.

·

Forged Tight Wheel- Gives stable and smooth movement on the beam.

·

Anti-Crash Side Plate-Earflaps design can protect trolley wheel from crash.

·

Welding Anti-Drop Block-Four blocks are welded on both side plates to keep the wheel tight on the track.

·

Industrial Powder Coating- meet RoHS and REACH requirement.

·

4 times of rated working load safety factor.

·

Quick View of GCT620 2 Ton Hoist Trolley

·

Model No.: GCT 620 for push beam trolley, GCL620 for geared beam trolley

·

Capacity: 3ton, other capacities available from 0.5ton to 5ton

·

Mini. Flange width:66mm

·

Max. Flange Width: 220mm

·

Hand Chain Size: 5x25mm, for geared beam trolley only

·

Color: Powder painting in orange, other colors are available upon request

·

Packing: Kraft box for size 0.5t up to 5t and a wooden box for 10t and above

·

Features and Advantages of GCT620 2 Ton Trolley

·

Fast and Easy Installation and Maintenance-Threaded main shaft provide fast installation and maintenance.

·

Quick Flange Width Adjustment-By simply screwing in and screwing out the main shaft to quickly adjustment of the flange width.

·

Low Headroom for Confined Space-Eye type shaft reduces the overall height and gives more headroom for operation.

·

Forged Tight Wheel- Gives stable and smooth movement on the beam.

·

Anti-Crash Side Plate-Earflaps design can protect trolley wheel from crash.

·

Welding Anti-Drop Block-Four blocks are welded on both side plates to keep the wheel tight on the track.

·

Industrial Powder Coating- meet RoHS and REACH requirement.

4 times of rated working load safety factor.

·

If you need any kinds of wire rope clips, please contact us, as a professional lifting equipment manufacturers, TITANSUHE is willing to offer you high quality products.
