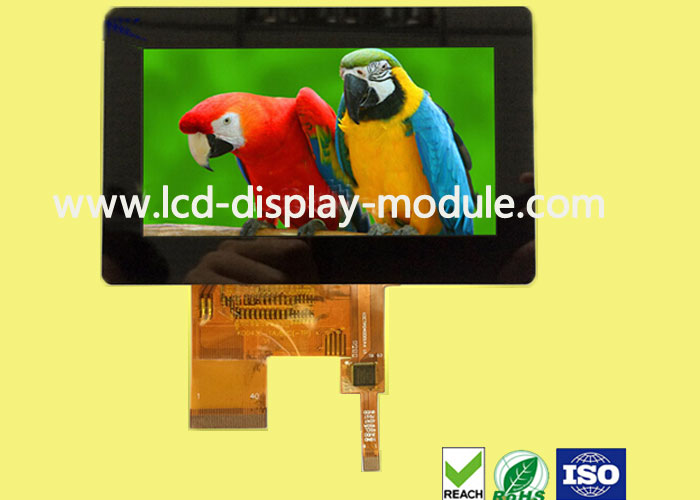

CTP Touch Panel 4.3 Inch TFT LCD Touch Panle Display 3 SPI + 16/18 / 24 Bit RGB Interface
Quantité : 500 Prix : Inquire
|
Items
|
Specification Main Panel
|
Unit |
Note |
| Module outline dimension | 115.4* 79.15* 4.79 | mm | |
|
TFT Display area(AA) |
95.04(H) *53.86(V) (4.3inch) |
mm |
- |
|
CTP View area |
96.04(H)*54.86(V) |
mm |
|
|
Driver element |
TFT active matrix |
- |
- |
|
Display colors |
65K/262K/16.7M |
colors |
- |
|
Number of pixels |
480(RGB)*272 |
dots |
- |
|
TFT Pixel arrangement |
RGB vertical stripe |
- |
- |
|
Pixel pitch |
0.198 (H) x 0.198 (V) |
mm |
- |
|
Viewing angle |
12: 00 |
o'clock |
- |
|
TFT Controller IC |
ILI6408B |
- |
- |
|
CTP Driver IC |
GT911 |
|
|
|
Simultaneous Touch Points |
5 |
|
|
|
Display mode |
Transmissive/Normally White |
- |
- |
| Brightness | 350 | cd/m2 | |
| Contrast | 500 | ||
| Pin number | 40 | pin | |
| Pin pitch | 0.5 | mm | |
| Backlight color | white LED | ||
| Backlight type | 9 LED serial, If=20mA, Vf=28.8V | ||
|
Operating temperature |
-20～+70 |
℃ |
- |
|
Storage temperature |
-30～+80 |
℃ |
- |
This is a color active matrix TFT (Thin Film Transistor) LCD (liquid crystal display) that uses amor phous silicon TFT as a switching device. This model is composed of a
Transmissive type TFT-LCD Panel, drivercircuit, backlight unit. The resolution of
a 4.3"TFT-LCD contains 480*272 pixels, and can display up to 65K / 262K / 1 6.7M colors.
For more products and information about our company, please search HONGSUS DISPLAY in Google to enter our company. Thanks.
