CU/PVC H07V-R

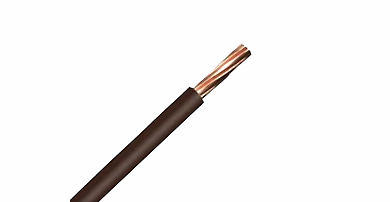

CU/PVC H07V R cable features a plain annealed strand conductor class 2 with PVC insulation. It is also known as building wire or electric wire. H07V-R cables have normal size of 1-400 mm².
We supply these cables following the IEC60227, BS EN 50525-2-31 with voltage 450/750v. For Australia and New Zealand standard AS/NZS 5000.1 These building wire have different rated voltage. They are 0.6/1kv rather than 450V/750V.
CU/PVC H07V R Cable Parameter
Description Of CU/PVC H07V-R
Conductor: annealed strand copper class 2
Rated voltage: 450/750v
Insulation: PVC
Bending radius: 15 times of overall diameter
Standard: BS EN50525-2-31, IEC 60227. AS/NZS 5000.1
Short circuit temp: +160 ℃
Flame retardant: IEC60332-1
Insulation resistance: 10 MΩ x km
Application Of CU/PVC H07V-R
H07V-U is designed for the application to the inside of equipment or protective laying to the lightings.it is normally installed in tubes conduit under and surface mounting of plasters indoor in dry situations. It is a good choice for production facilities, inner wiring of equipment, switch and distributor boards or were a thicker strand of multi-wire is required.
For more information about cu pvc, please feel free to contact us!
If you need any kinds of xlpe wire, please contact us, as one of the most professional industrial control cables manufacturer, JENUIN is willing to offer you high quality products.
