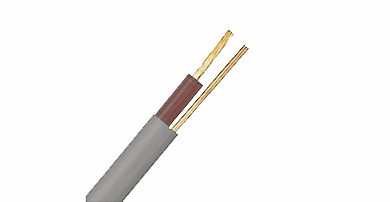

CU/PVC/PVC 6241Y Flat Core And Earth Cable

BS6004 6241Y cables refer to the flat single-core and circuit protective core (earth core) with a voltage of 300/500v.

6241Y cable is normally used fixed installation in domestic locations and industrial lighting in both dry and damp walls, and also can be fixed in cable tray, embedded in plaster and cable trunking.

These 6241Y cables can be designed for low smoke zero halogens (LSZH) as 6241B.

CU/PVC/PVC 6241Y Flat Core And Earth Cable Parameter

Description of CU/PVC/PVC 6241Y Flat Core And Earth Cable

Conductor: Annealed Stranded class 1 or class 2

Rated voltage: 300/500V

Insulation: PVC

Sheath: PVC

Standard: BS 6004: 2012 Table 3

Application Of CU/PVC/PVC 6241Y Flat Core And Earth Cable

Widely used in lighting and domestic buildings. These 6241Y cables are particularly suited for installation as meter tails and are used for fixed installation in the condition of dry or damp occasion.

6241y pvc flat profile cable can be laid in conduit, cable trunking and cable ducting. Or where there is little risk of mechanical damage these cables can be fixed with clip directly or by cable tray or embedded or in free air. They are not allowed to be laid underground.

For more information about single core cable armour earthing and cu pvc cable, please feel free to contact us!

If you need any kinds of xlpe insulated cable, please contact us, as a professional xlpe cable supplier, JENUIN is willing to offer you high quality products.
