Cut To Length Line
Quantité : 5000 sets Prix : USD5,000.00-USD3,000

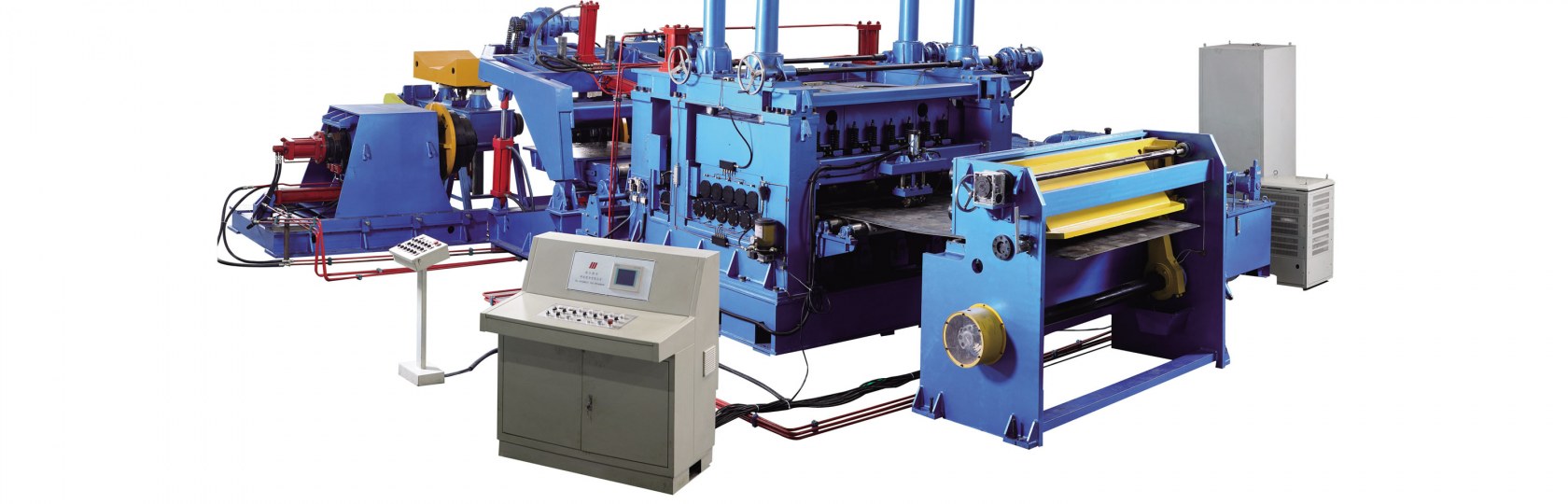

This china cut to length machine is special equipment for uncoiling, leveling, cutting and stacking the steel sheet according to the requirement of the client. It mainly consists of uncoiler, leveling system, feeding system, cutting system, conveying system, stacking system and so on.
This product is widely used in steel structure raw material separation to provide raw material preparation for better production of final products, for slitting 0.3-16mm steel panel or cut to length 0.5-30mm steel panel.
As a China cut to length line suppliers, we can design and manufacture different specifications according to the different requirements of the client.
Parameters Of China Cut To Length Line
Item |
Parameters |
||||||
Model |
JH-3×1600 |
JH-6×1600 |
JH-10×1600 |
JH-12×2000 |
JH-16×2200 |
JH-20×2200 |
JH-30×2200 |
Thickness(mm) |
0.5-3.0 |
1.5-6.0 |
2.5-10 |
3.0-12 |
4.0-16.0 |
5.0-20 |
7.5-30 |
Coil weight |
35 |
30 |
35 |
35 |
35 |
40 |
40 |
Width(mm) |
800-1600 |
800-1600 |
800-1600 |
1000-2000 |
1000-2200 |
1000-2200 |
1000-2200 |
Number of leveling rollers |
≥15 |
≥13 |
≥11 |
≥11 |
≥9 |
≥9 |
≥9 |
Line speed(meter/minute) |
0-60 |
0-40 |
0-30 |
0-30 |
0-20 |
0-20 |
0-20 |
Power(KW) |
90 |
155 |
240 |
255 |
255 |
305 |
460 |
Mechanical area(m) |
8×30 |
8×35 |
8×30 |
10×32 |
10×53 |
10×55 |
10×56 |
Material Specification Of China Cut To Length Line
Item |
Parameters |
|||
Cut coil material specification |
Cut material |
Common carbon steel, stainless steel, color coated plate, and galvanized plain steel |
||
Coil width(mm) |
200-650 |
600-1350 |
600-1600 |
|
Coil thickness |
0.2-2.0 mm |
0.2-2.0 mm |
0.3-3.0 mm |
|
Coil weight(T) |
6 |
15 |
15 |
|
Line speed(m/min) |
15-50 m/min |
15-50 m/min |
15-60 m/min |
|
Cutting length(mm) |
300-1500 |
600-2500 |
1000-4000 |
|
Power (kw) |
75 |
95 |
110 |
|
Mechanical area(M) |
4×16 |
7×20 |
9×26 |
Jinggong provides cut to length machine for sale, used cut to length line for sale, cut to length line for sale. Want to know the types of auxiliary equipment or buy china roll forming machine, contact us now.
Personne à contacter : Wang Sue, 0575 84138681
Bonne affaire : acheter au vendeur
