CuZn37 EDM wire brass wire for CNC machine cutting
Quantité : 200kg Prix : USD6.5/kg
product Description

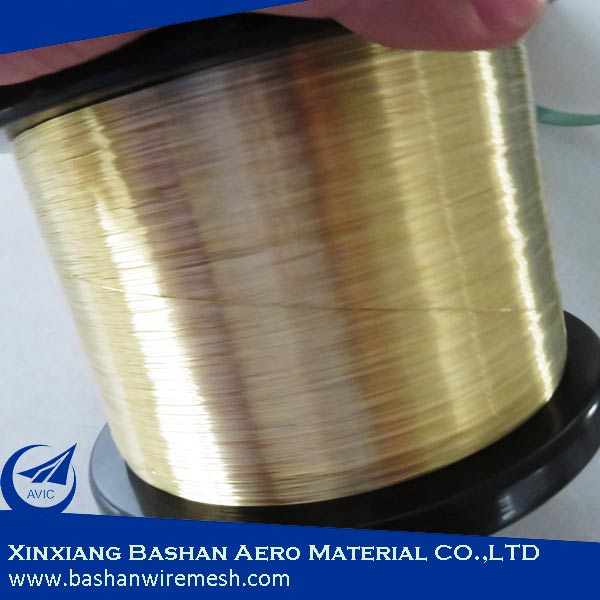

China Bashan EDM copper wire Factory hard medium hard and soft EDM brass Wire 0.3mm 0.25mm
| Product Name | China Bashan EDM copper wire Factory hard medium hard and soft EDM brass Wire 0.3mm 0.25mm |
| composition | Cu60%, Zn40% or Cu63%, Zn37% or Cu65%, Zn35% |
| Wire diameter | 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm |
| Weight/Spool | 3kg/5kg/7kg/15kg/20kg |
| Tensile strength: | 1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2 |
| tolerance | 0.001 |
| Ultimate Strength (≥ MPa) | 980 |
| Packing | Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance. |
| Used | Agie Charmillies, SODICK, Mitsubishi, Makino EDM machine |
China Bashan EDM copper wire Factory hard medium hard and soft EDM brass Wire 0.3mm 0.25mm
| Condition | Diameter(mm) | Tolerance(mm) | Tensile Strength (N/mm²) | Type of Spool (Standard Weight) |
| Hard | 0.10 | ±0.001 | ≥980 | DIN125(3kg, 3.5kg |
| 0.15 | ±0.001 | ≥980 | ||
| 0.20 | ±0.001 | ≥980 | DIN125(3kg, 3.5kg) p5(5kg) DIN160(7kg, 8kg) DIN200(15kg, 16kg) |
|
| 0.25 | ±0.001 | ≥980 | ||
| 0.30 | ±0.001 | ≥980 | ||
| Semi-hard | 0.25 | ±0.001 | 480~520 | |
| 0.30 | ±0.001 | |||
| Soft | 0.25 | ±0.001 | 380~420 | |
| 0.30 | ±0.001 |
Good conductivity, a large number of used in the manufacture of wires, cables, brushes, etc.
Features
1.Various of wire core material can match demands of different wire-cute machine.
2.Heat treatment technology ensures tensile strength stability, and prevents damage of wire.
3.Superior verticality suitable for automatic threading.
4.High drawing precision, fine ovality, low tolerance.
5.Outstanding wire cutting speed compared, drop less powder.
China Bashan EDM copper wire Factory hard medium hard and soft EDM brass Wire 0.3mm 0.25mm
1. A heavy paper dust protection: endometrial advantage.
2. Double protection: seal for PVC precision plastic mold.
3. Three protection: professional shockproof corrugated box
| Material | Type | D1 | D2 | d | W1 | W2 | Spool/box | Spool W (k) | Volum/box |
| ABS | DIN125 | 125 | 80 | 20 | 125 | 100 | 4 | 0.2 | 0.254X0.254X0.127=0.008M3 |
| P3 | 130 | 80 | 20 | 110 | 90 | 4 | 0.2 | 0.264X0.224X0.132=0.008M3 | |
| P5 | 160 | 90 | 20 | 114 | 90 | 4 | 0.33 | 0.324X0.232X0.18=0.014M3 | |
| DIN160 | 160 | 100 | 22 | 160 | 128 | 2 | 0.35 | 0.324X0.162X0.18=0.009M3 | |
| DIN200 | 200 | 125 | 22 | 200 | 160 | 1 | 0.66 | 0.22X0.22X0.22=0.01M3 |
Our Company:
AVIC Xinxiang Bashan Aero Material Co., Ltd
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard. )
Contact: Maggie Guan
Personne à contacter : Maggie Guan, +86 373 3091998
