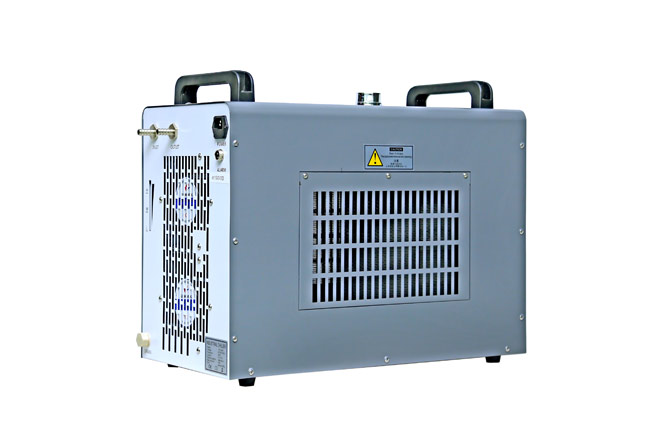

CW5000 Water Chiller For 5kw CNC Spindle
Quantité : 1000sets/ Prix : 90-10000
The 800W cooling capacity of CW 5000 water chiller can be used to cool a single 5kw CNC spindle or two 2.2kw CNC spindles. industrial chiller cw 5000 is a small-scale refrigeration type water chiller. It is cooled by a compressor and then circulated through a water pump and radiator to dissipate heat from the numerical control equipment into the surrounding air. The cooling temperature of CW5000 can be adjusted according to the actual needs of customers, which is very convenient to use.
Advantage Of CW5000 Water Chiller For 5KW CNC Spindle
The rated cooling capacity is 800W and the environmental Refrigerant R-134a is selected.
Small size, simple operation.
Temperature control mode: intelligent temperature control mode, constant temperature mode.
Temperature control accuracy ± 0.3 ℃.
Specification Of CW5000 Water Chiller For 5kw CNC Spindle
|
Model |
CW-5000AG |
CW-5000BG |
CW-5000DG |
CW-5000AI |
CW-5000BI |
CW-5000DI |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
1.4~2.1A |
3.5~5.6A |
1.4~2.1A |
3.5~5.6A |
||
|
Compressor power |
0.52KW |
0.5KW |
0.68KW |
0.52KW |
0.5KW |
0.68KW |
|
Refrigeration capacity |
1.49KW |
1.46KW |
1.52KW |
1.49KW |
1.46KW |
1.52KW |
|
Refrigerant |
R-22/R-134a |
|||||
|
Refrigerant charge |
360g |
380g |
350g |
360g |
380g |
350g |
|
Precision |
±0.3℃ |
|||||
|
Reducer |
Capillary |
|||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|||||
|
Pump power |
28.8W |
0.1KW |
||||
|
Tank capacity |
9L |
|||||
|
Inlet and outlet |
External Φ10mm Tower shaped joint |
Diameter Φ10mm speedy connector |
||||
|
Max. lift |
8M |
25M |
||||
|
Max. flow |
10 L/min |
16 L/min |
||||
|
N.W |
28 Kgs |
|||||
|
G.W |
31Kgs |
|||||
|
Dimension |
56 X 28X 47 cm (L X W X H) |
|||||
|
Package dimension |
72 X 44 X 57 cm (L X W X H) |
|||||
Application Of CW5000 Water Chiller For 5kw CNC Spindle
Applied to cool a single 5kw CNC spindle or two 2.2kw CNC spindles.
More Details Of CW5000 Water Chiller For 5kw CNC Spindle
Detachable Dust-proof Filter, Reasonable Arrangement Of Cooling Holesf
The Operation Panel Is Simple And Easy To Operate, And Can Be Directly Turned On And Used
It Is Simple To Install Water Pipe Joints At The Water Inlet And Outlet, And Is Also Equipped With An Alarm Signal Output Port
High-power Silent Fan To Achieve The Best Heat Dissipation Efficiency
As a leading water chiller system supplier, Xlntchillers provides industrial chiller cw 5200, 5kw chiller, chiller 5 kw, chiller cnc, chiller 5kw, 5kw water chiller, laser cooling system, etc. Contact us to buy welding water chiller or know industrial water cooler price.
