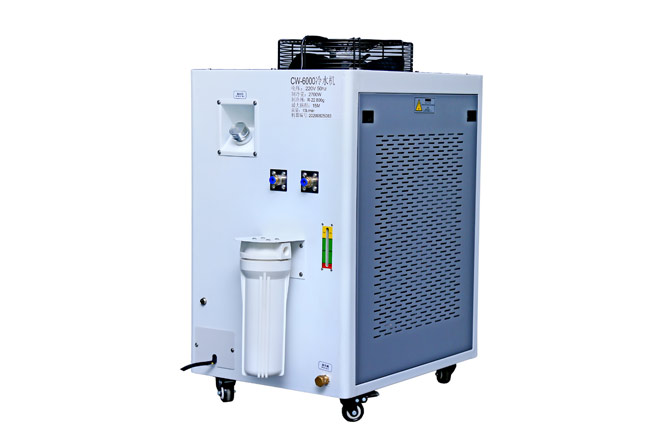

CW6000 450W CO2 Laser Water Chiller
CW6000 Co2 Laser Water Chiller with a cooling capacity of 3000W can cool co2 laser tubes below 450W. CW6000 is a high-precision compression water chiller with a cooling accuracy of ±0.5℃. The intelligent temperature control system of CW6000 has two temperature control modes: intelligent mode and constant temperature mode. According to the specific needs of users, it can not only provide a constant temperature use environment, but also intelligently adjust the water temperature according to the temperature of the environment.
Advantage Of CW6000 450W Co2 Laser Water Chiller
The cooling capacity is up to 3000W, and environmentally friendly refrigerants can be used.
The intelligent thermostat has two temperature control modes, which are suitable for different use occasions; it has a variety of settings and fault display functions.
Multinational power supply specifications, CE.
The temperature control accuracy can reach ±0.5℃.
Specification Of CW6000 450W Co2 Laser Water Chiller
|
Model |
CW-6000AH |
CW-6000BH |
CW-6000DH |
CW-6000AI |
CW-6000BI |
CW-6000DI |
CW-6000AN |
CW-6000BN |
CW-6000DN |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
110V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
1~4.5A |
1~10A |
1.5~5.5A |
1.5~10.5A |
2~6A |
2~11A |
|||
|
Compressor power |
0.965KW |
0.895KW |
1.12KW |
0.965KW |
0.895KW |
1.12KW |
0.965KW |
0.895KW |
1.12KW |
|
1.28HP |
1.22HP |
1.52HP |
1.28HP |
1.22HP |
1.52HP |
1.28HP |
1.22HP |
1.52HP |
|
|
Refrigeration capacity |
10286Btu/h |
9502Btu/h |
10724Btu/h |
10286btuh |
9502Btu/h |
10724Btu/h |
10286btuh |
9502Btu/h |
10724Btu/h |
|
3.015KW |
2.785KW |
3.145KW |
3.015KW |
2.785KW |
3.145KW |
3.015KW |
2.785KW |
3.145KW |
|
|
2592Kcal/h |
2395kcal/h |
2711Kcal/h |
2592kcal/h |
2395kcal/h |
2711Kcal/h |
2592kcal/h |
2395Kcal/h |
2711Kcal/h |
|
|
Refrigerant |
R-22/R-410a |
||||||||
|
Refrigerant charge |
800g |
750g |
650g |
800g |
750g |
650g |
800g |
750g |
650g |
|
Precision |
±0.3℃ |
||||||||
|
Reducer |
Capillary |
||||||||
|
Protection |
Over current protection for compressor, flow alarm, over temperature alarm |
||||||||
|
Pump power |
0.05KW |
0.1KW |
0.37~0.75KW |
||||||
|
Tank capacity |
15L |
||||||||
|
Inlet and outlet |
Rp1/2" |
||||||||
|
Max. lift |
12M |
25M |
28~53M |
||||||
|
Max. flow |
13L/min |
16L/min |
70L/min |
||||||
|
N.W |
60Kgs |
72Kgs |
|||||||
|
G.W |
70Kgs |
82 Kgs |
|||||||
|
Dimension |
67 X 47 X 89 cm (L X W X H) |
||||||||
|
Package dimension |
74 X 62 X 109 cm(L X W X H) |
||||||||
Application Of CW6000 450W Co2 Laser Water Chiller
Used to cool co2 laser tubes below 450W.
Established in 2007, Xlntchillers is one of professional industrial water chiller manufacturers. We provide CO2 Laser Water Chiller, CNC Spindle Chiller, chiller for injection molding machine and so on. Want to know about cw6200? Please contact us.
