CW6200 Water Chiller Units For 45KW CNC Spindle
CW6200 Water Chiller Units For 45KW CNC Spindle
CW6200 Water Chiller units can professionally cool the spindles of CNC equipment below 45KW. The main accessories of cw 6200 chiller with a cooling capacity of 5100W are all cooperated with world-renowned brands to meet the high-precision cooling needs of different users in various industries. CW6200 continuously optimizes performance, adopts the top high-speed fan design that is most conducive to heat dissipation, is equipped with stainless steel multi-stage centrifugal pumps, has multiple alarm protection functions and aviation signal output terminals.
Advantage Of CW6200 Water Chiller Units For 45KW CNC Spindle
The cooling capacity is 5200W, and environmentally friendly refrigerant is selected.
The temperature control accuracy is ±0.5℃.
It adopts internationally renowned compressors and the condenser adopts copper imported from abroad, which can efficiently refrigerate.
Intelligent thermostat, multiple settings and fault prompt functions, easy to operate.
Specification Of CW6200 Laser Water Chiller Units For 45KW CNC Spindle
Model |
CW-6200AH |
CW-6200BH |
CW-6200AI |
CW-6200BI |
CW-6200AN |
CW-6200BN |
Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
Frequency |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
Current |
1~8.2A |
1~8A |
1.5~8.7A |
1.5~8.5A |
2~9.2A |
2~9A |
Compressor power |
1.68KW |
1.645KW |
1.68KW |
1.645KW |
1.68KW |
1.645KW |
2.28HP |
2.24HP |
2.28HP |
2.24HP |
2.28HP |
2.24HP |
|
Refrigeration capacity |
17510Btu/h |
17640Btu/h |
17510Btu/h |
17640Btu/h |
17510Btu/h |
17640Btu/h |
5.13KW |
5.17KW |
5.13KW |
5.17KW |
5.13KW |
5.17KW |
|
4420Kcal/h |
4446Kcal/h |
4420Kcal/h |
4446Kcal/h |
4420Kcal/h |
4446Kcal/h |
|
Refrigerant |
R-22/R-410a |
|||||
Refrigerant charge |
1100g |
1200g |
1100g |
1200g |
1100g |
1200g |
Precision |
±0.5 °C |
|||||
Reducer |
Capillary |
|||||
Protection |
Overcurrent protection for compressor, flow alarm, over-temperature alarm |
|||||
Pump power |
0.05KW |
0.1KW |
0.37~0.75KW |
|||
Tank capacity |
15L |
|||||
Inlet and outlet |
Rp1/2" |
|||||
Max. lift |
12M |
25M |
28~53M |
|||
Max. flow |
13L/min |
16L/min |
70L/min |
|||
N.W |
69Kgs |
82Kgs |
||||
G.W |
79Kgs |
92Kgs |
||||
Dimension |
67 X 47 X 89 cm(L X W X H) |
|||||
Package dimension |
74 X 60 X 109 cm(L X W X H) |
Application Of CW6200 Water Chiller Units For 45KW CNC Spindle
Can professionally cool the spindles of CNC equipment below 45KW.
More Details Of CW6200 Water Chiller Units For 45KW CNC Spindle

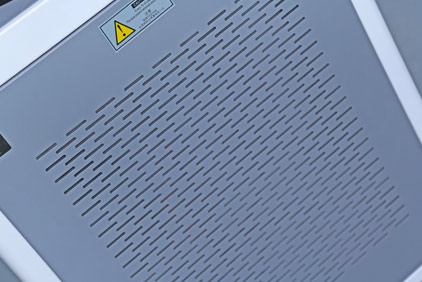

Dense Heat Dissipation Holes To Maximize Heat Dissipation Effect
The Internal Radiator Adopts High-density Copper Tube, Which Has Better Heat Exchange Effect
Use Ultra-quiet Large Wind Fan For Better Heat Dissipation
Now the industrial water cooler price is affordable, if you have needs, please contact us.
