Cylindrical Cell (NMC, LiFePO4)
ACE offers cylindrical lithium ion battery cells (lifepo4,nmc, rechargeable) like cylindrical 18650, 26650 lifepo4 battery cell and nmc 21700, with different li-ion types, diversified capacity levels and discharge rates such as 1200mah, 1500mah, 2000 mah, 2600mah, 2800mah, 3000mah, 3200mah, 3400mah, 3500mah, 3600mah, 4000mah, 4200mah, 4800mah, 5000mah, 6000mah, 6800mah, 9800mah, 9900mah, etc.
As an excellent li ion battery company, ACE provides cylindrical cells at a cheap price (like lithium ion battery 18650), which are applicable for power tools, E-mobility, consumer, medical and ESS products, etc.
As well, the battery cells (such as 18650 lithium ion battery, 21700 lithium ion cells) for sale are high quality, lightweight, and bulk.
Features of Cylindrical Lithium Ion Cell
Safety, High Capacity, Long Cycle Life, Wide temperature range, UL1642, IEC62133, UN38.3 Approved
Li-ion (NCM) Cylindrical Cell List
|
|
Middle Rate Model |
||||||
|
PN# |
H18650CAP/H18650CBP |

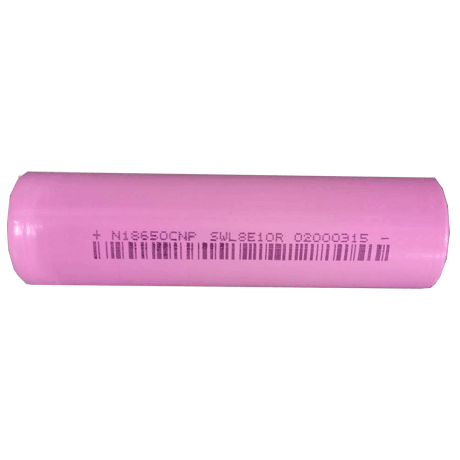

N18650CNP |
H18650CC/H18650CQ |
H18650CH |
N18650CL/ |
N21700CM/N21700CA/ |
|
|
Typical Capacity(Ah)@0.2C |
2.0/2.0 |
2.5 |
2.2/2.55 |
2.6 |
2.9/3.35 |
4.1/4.5/4.8/5.0 |
|
|
Nominal Voltage(V) |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
|
|
Weight(g) |
≤ 48g |
≤ 48g |
≤48g |
≤48g |
≤49g |
≤70g |
|
|
Internal Resistance(mΩ) |
≤17mΩ |
≤16mΩ |
≤30mΩ/≤30mΩ |
≤35mΩ |
≤35mΩ |
≤30mΩ/≤25mΩ/ |
|
|
Discharge |
Standard |
0.2C |
0.2C |
0.2C |
0.2C |
0.2C |
0.2C |
|
Max. |
15C |
10C |
5C/3C |
4C |
3C/3C |
3C/3C/2C/3C |
|
|
End Voltage(V) |
2.5 |
2.5 |
2.75 |
2.75 |
2.5 |
2.75/2.5 |
|
|
Charge |
Standard |
0.5C |
0.5C |
0.5C |
0.5C |
0.5C |
0.5C |
|
Max. |
2C |
1.6C(4A) |
1C |
1C |
1C |
1C |
|
|
End Voltage(V) |
4.2 |
4.2 |
4.2 |
4.2 |
4.2 |
4.2 |
|
|
Temperature |
Charge |
0-50 |
0-50 |
0-45 |
0-45 |
0-45 |
0-45 |
|
Discharge |
-20-75 |
-20-75 |
-20-60 |
-20-65 |
-20-60 |
-20-60 |
|
|
Cycle Life(to 80% BOL capacity) |
300cycles-70%BOL |
300cycles-60%BOL |
1000cycles |
500cycles-70% |
1000cycles |
1000cycles/800cycles |
|
As one of the most reliable chinese lithium ion battery manufacturers, Ace provides china li ion battery, cylindrical lifepo4 battery, cylindrical rechargeable lithium ion battery, 26650 battery wholesale, wholesale battery cell, floor scrubber battery and etc. Want to know 18650 vs 26650 battery life or more? Please contact us.
