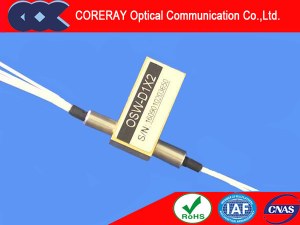

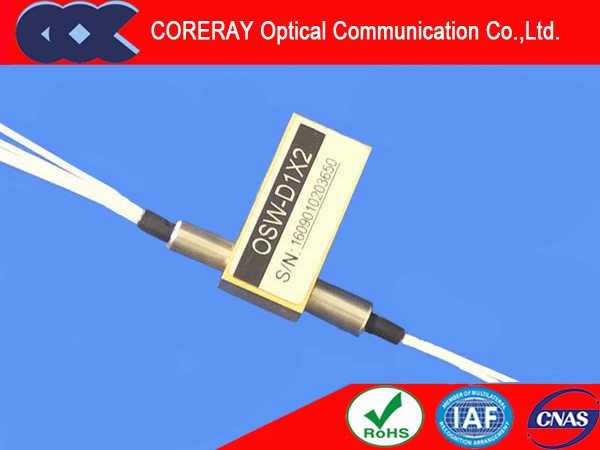

D1x2 fast optical switch/ Mechanical Optical Switches
Quantité : 1 Prix : usd
Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application
· Optical Signal Switching and Routing
· Optical Network Protection and Restoration
· Optical Network Monitoring
· Video Distribution
· Instrumentation Resource Sharing
· Military Communications
|
Parameters |
|
OSW-D1x2 |
||
|
Wavelength Range |
nm |
650～1310 |
1260～1670 |
|
|
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
|
|
Insertion Loss |
dB |
Typ: 0.6,Max: 1.0 |
Typ: 0.5 ,Max: 0.8 |
|
|
Return Loss |
dB |
≥35 |
≥50 |
|
|
Crosstalk |
dB |
≥40 |
≥50 |
|
|
PDL |
dB |
≤0.05 |
||
|
WDL |
dB |
≤0.25 |
||
|
TDL |
dB |
≤0.25 |
||
|
Repeatability |
dB |
≤±0.02 |
||
|
Power supply |
v |
3.0 or 5.0 |
||
|
Lifetime |
Cycle |
≥107 |
||
|
Switch Time |
ms |
≤8 |
||
|
Transmission Power |
mW |
≤500 |
||
|
Operation Temperature |
℃ |
-40～+85 |
||
|
Storage Temperature |
℃ |
-40～+85 |
||
|
Weight |
g |
16 |
||
|
Dimension |
mm |
(L)27×(W)12.6×(H)8.5(±0.2) |
||
Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Application
· Optical Signal Switching and Routing
· Optical Network Protection and Restoration
· Optical Network Monitoring
· Video Distribution
· Instrumentation Resource Sharing
· Military Communications
|
Parameters |
|
OSW-D1x2 |
||
|
Wavelength Range |
nm |
650～1310 |
1260～1670 |
|
|
Testing Wavelength |
nm |
650/780/850/980/1064/1310 |
1310/1490/1550/1625/1650 |
|
|
Insertion Loss |
dB |
Typ: 0.6,Max: 1.0 |
Typ: 0.5 ,Max: 0.8 |
|
|
Return Loss |
dB |
≥35 |
≥50 |
|
|
Crosstalk |
dB |
≥40 |
≥50 |
|
|
PDL |
dB |
≤0.05 |
||
|
WDL |
dB |
≤0.25 |
||
|
TDL |
dB |
≤0.25 |
||
|
Repeatability |
dB |
≤±0.02 |
||
|
Power supply |
v |
3.0 or 5.0 |
||
|
Lifetime |
Cycle |
≥107 |
||
|
Switch Time |
ms |
≤8 |
||
|
Transmission Power |
mW |
≤500 |
||
|
Operation Temperature |
℃ |
-40～+85 |
||
|
Storage Temperature |
℃ |
-40～+85 |
||
|
Weight |
g |
16 |
||
|
Dimension |
mm |
(L)27×(W)12.6×(H)8.5(±0.2) |
||
Personne à contacter : tang xinwen, 7713212622
Bonne affaire : acheter au vendeur
