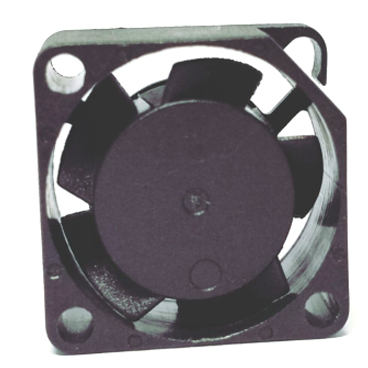

DC Micro Fans
The small size of WHEE mini dc fan solves the problem of space-limited product that need extra heat dissipation. Forced convection of hot air is formed inside the confined airframe, and cold air is introduced to effectively reduce the heat source.
DC fan is a micro dc fan that small in size but high in efficiency and low in power use. Micro DC fan is available for OEM and ODM Service as well. Find specially designed miniature fans supplied by the cooling fan manufacturer from China.
Micro DC Fans Functions
FG: FG Signal
RD: RD Signal
PWM: PWM Signal
VC: Voltage Control
TC: Temperature Control
Advantages of Micro DC Fans
The inside of the Micro DC Fans mostly uses high-efficiency permanent magnets. After the power is turned on, the drive shaft drives the fan blades through the principle of electromagnetic effect, which greatly reduces the frictional kinetic energy consumption generated when the fan is running. This also makes the noise emitted by the Micro DC Fans can be as low as 15 decibels, and the power consumption is only one-third of the traditional AC fan, and the number of air volume adjustment stages is generally more than that of the AC fan.
Micro DC Fans Specifications
|
BEARING TYPE |
F.D. Bearing /One ball /Sleeve bearing/ Two ball |
|
FRAME |
P B T. UL94V-0 |
|
IMPELLER |
P B T. UL94V-0 |
|
P C B |
UL94V-0 |
|
MATERIAL LIST |
RoHS Compliant |
|
OPERATING TEMPERATURE |
-10 ℃ ~ + 70 ℃ |
|
STORAGE TEMPERATURE |
-40 ℃ ~ + 70 ℃ |
|
DIELETRIC STRENGTH |
Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires. |
|
INSULATION RESISTANCE |
At least 10 MΩ at 500VDC between internal stator and both lead wires. |
|
LIFE EXPECTANCY |
30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient. |
DC Micro Fans List
20*20*10 DC Micro Fans
25*25*10 DC Micro Fans
30*30*07 DC Micro Fans
30*30*10 DC Micro Fans
35*35*10 DC Micro Fans
38*38*28 DC Micro Fans
Now the price of dc fans for sale is affordable, if you have needs, please contact us.
As one of cooling fan manufacturers, we will do our best to meet all customers' needs.
