DC power surge protector for photovoltaic system
Quantité : 100000 Prix : 30.15usd

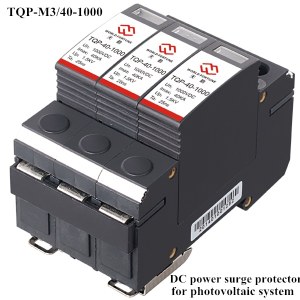

TQP-M3/40-1000
DC power surge protector for photovoltaic system
1. Product features
l Thermal disconnect device
l High current capacity, quick response
l Low residual voltage, free of leakage current
l Remote warning
l Easy installation with Din rail mounting
l Plug connectors for quick and easy connection or rewiring
2. Applications
l PV combiner box
l DC power system
l DC distribution box
l DC switchboard
l Electronic information system box
l Output of second Power equipment
3. Technical data
|
Model |
TQP-M3 / 40-1000 |
|
Nominal operating voltage Un |
1000VDC |
|
Maximum continuous operating voltage Uc |
1200VDC |
|
Nominal discharge current In (8/20μs) |
20KA |
|
Maximum discharge current Imax (8/20μs) |
40KA |
|
Protection level Up (8/20μs,20KA） |
≤1.5KAV |
|
Response time Ta |
≤25ns |
|
Protection modes |
3: star type, 2: +/- -PE |
|
Dimension |
90*54*65mm |
|
Weight per unit |
387g |
|
Mounting type |
DIN rail : 35mm |
|
Housing material |
Anti-flaming |
|
Index of protection |
IP20 |
|
Operating environment |
Temperature: -40—+85℃ humidity: ≤95% |
|
Remote control (optional) |
Normally closed, normally open or COM |
|
Warranty |
Five-year warranty, three-year replacement |
|
Related models |
TQP-M3/40-800, TQP-M2/40-500, TQP-M2/40-300 |
