DF71M Dobby Towel Loom
Quantité : 150 sets/m Prix : USD $1000~$30000

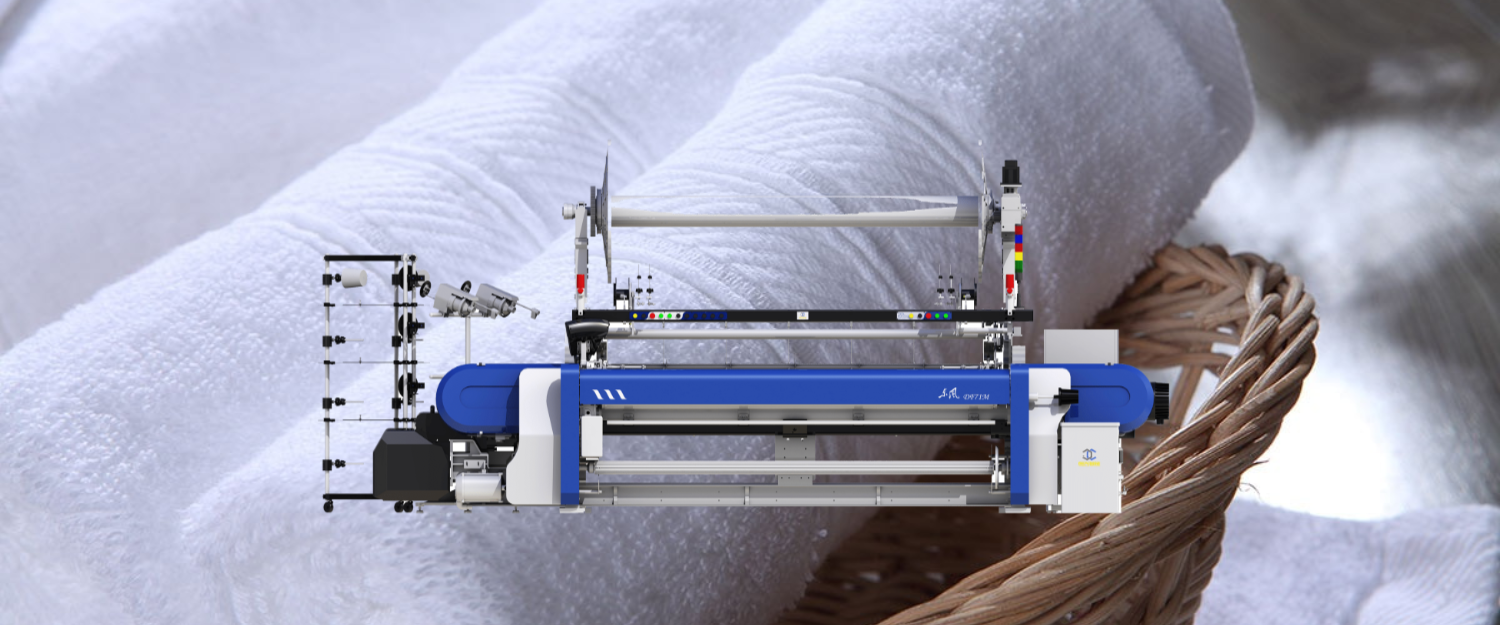

DF71M model is a high speed towel dobby loom with excellent design and prominent performance. The loom can weave not only precise garment fabrics and decorative cloth, but also industrial cloth like glass fiber cloth and filter cloth. This dobby weaving machine is competent for various towel production, including royal velvet, sheared towel, and other kinds of looped fabrics.
SALIENT FEATURES
Drive System
The rapier can adopt either three-phase asynchronous motor plus inverter to realize strong start and stop force, or super motor direct drive.
Weft Insertion System
The weft insertion system is driven by crank-connecting rod, which optimizes acceleration and velocity curve, ensuring a perfect operation at highest speed and flawless fabric quality.
Beat-up System
Beat-up is managed by bilateral conjugate cam and separating sley, with short stroke and strong force.
Lubrication System
With a closed circulating type of lubrication system, the moving parts of rapier loom can get reliable and prompt lubrication; it also offers oil level warning and oil pressure warning.
Loop Formation System
DF71M towel loom is a reed moving type model, can be switched between 3~7 wefts, and loop height can be se freely between 0~12mm to meet high-class weaving needs like wavy terry, embossed terry and etc.
Strengthened Machine Frames
The loom is assembled with 4 pcs of strong casting panels, together with tough crossbeam and support beam. This structure helps to achieve high stability and low vibration.
Beside DF71M towel dobby loom, we also provide a jacquard towel loom named DF71JM. This jacquard loom machine can match electronic jacquard with hooks ranging from 1344, 2688, 5120, 6144, 12288 and etc, to weave all kinds of high-class jacquard towels.
TECHNICAL PARAMETERS
Width |
190cm, 220cm, 230cm, 260cm, 290cm, 320cm, 340cm, 360cm |
Operation speed |
300~400rpm |
Take up |
electronic take-up |
Letoff |
electronic let-off,beam diameter φ500, optional outer roller diameter available |
Shedding |
electronic dobby 12~20 frames |
Weftdensity |
2~200pick/cm |
Color selector |
high speed electronic weft selector, 2~8 colors |
Weftquantity forloop |
3-7 weft |
Loop length |
0-24mm, accuracy up to 0.1mm |
Maindrive |
three-phase asynchronous motor plus inverter or super motor |
Electronic control |
32-bit CPU control system and embedded software |
Lubrication |
closed circulating type of automatic lubrication system |
