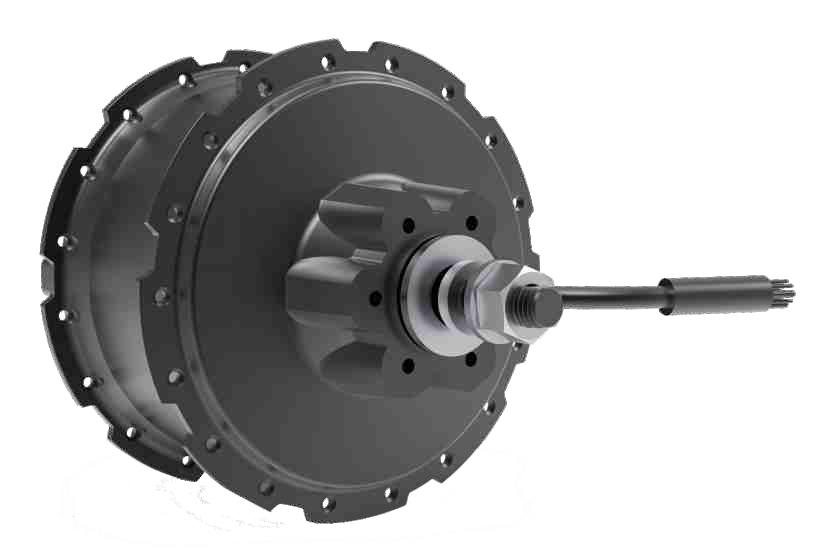

DGW25LS-Rear Drive Motor-MTB
You can choose this motor, it rides very safety and comfort, it provides high power and high speed.
Main Parameter of Rear Drive Motor DGW25LS
|
Specification |
Parameter |
|
Driving position |
Rear |
|
Wheel size |
16in~28in |
|
Spoke |
36holes 12G |
|
Rated power |
350W |
|
Rated voltage |
36V~48V |
|
Max. torque |
40N.m |
|
Efficiency |
≥80% |
|
Cable side |
Left |
|
Number of magnet |
20 |
|
Reduction gear ratio |
1: 4.33 |
|
Installation dimension |
175mm |
|
Inside speed sensor |
1~6 |
|
Hall sensor |
With/ Without |
|
Free wheel |
Screw 6-7S |
|
Brake |
Disc-brake |
|
Classification of waterproof |
IPX5 |
|
Weight |
3.9kg |
Suzhou Shengyi Motor Co., Ltd is a professional hub motor manufacturers, we provide powerful hub motor,powerful ebike motor and etc. Want to know more? Please contact us.
Personne à contacter : Lee Dustin, 0512 65963935
