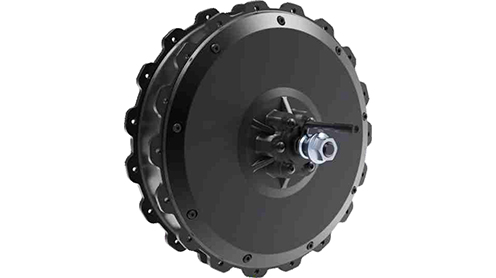

DGW29-Rear Drive Motor-MTB
High power direct motor, wheel size 24in~29in, it provides a lot of power.
Main parameter of DGW29-Rear Drive Motor-MTB
|
specification |
parameter |
|
Driving position |
Rear |
|
Wheel size |
24in-29in |
|
Spoke |
36holes 12G/13G |
|
Rated power |
750W |
|
Rated voltage |
36V~48V |
|
Max.torque |
55N.m(48V,26in,38KM,350W,15A) |
|
Efficiency |
≥80％ |
|
Cable side |
Left |
|
Number of magnet |
46 |
|
Reduction gear ratio |
Direct drive |
|
Installation dimension |
135mm |
|
Inside speed sensor |
1~6 |
|
Hall sensor |
With/Without |
|
Free wheel |
Cassette 8-10s/Screw 6-7s |
|
Brake |
Disc-brake |
|
Classification of waterproof |
IPX5 |
|
Weight |
5.2Kg |
Suzhou Shengyi Motor Co., Ltd is a professional hub motor company, we provide 750w shengyi motor,750w electric motor,electric hub motor china and etc. Want to know more? Please contact us.
