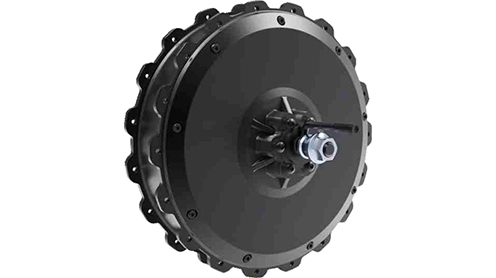

DGW29-Rear Drive Motor-MTB
High power direct 750w hub motor, wheel size 24in~29in, it provides a lot of power.
Main parameter of DGW29-Rear Drive MTB Motor
|
specification |
parameter |
|
Driving position |
Rear |
|
Wheel size |
24in-29in |
|
Spoke |
36holes 12G/13G |
|
Rated power |
750W |
|
Rated voltage |
36V~48V |
|
Max.torque |
55N.m(48V,26in,38KM,350W,15A) |
|
Efficiency |
≥80％ |
|
Cable side |
Left |
|
Number of magnet |
46 |
|
Reduction gear ratio |
Direct drive |
|
Installation dimension |
135mm |
|
Inside speed sensor |
1~6 |
|
Hall sensor |
With/Without |
|
Free wheel |
Cassette 8-10s/Screw 6-7s |
|
Brake |
Disc-brake |
|
Classification of waterproof |
IPX5 |
|
Weight |
5.2Kg |
Drawing of DGW29 Hub Motor-MTB
More kinds of ebike direct drive, please contact us.
If you want to find a reliable motor dc 500w supplier, please choose us, and we will be your best partner.
Now the price of electric bike motors for sale is low, if you have needs, please leave us a message.
