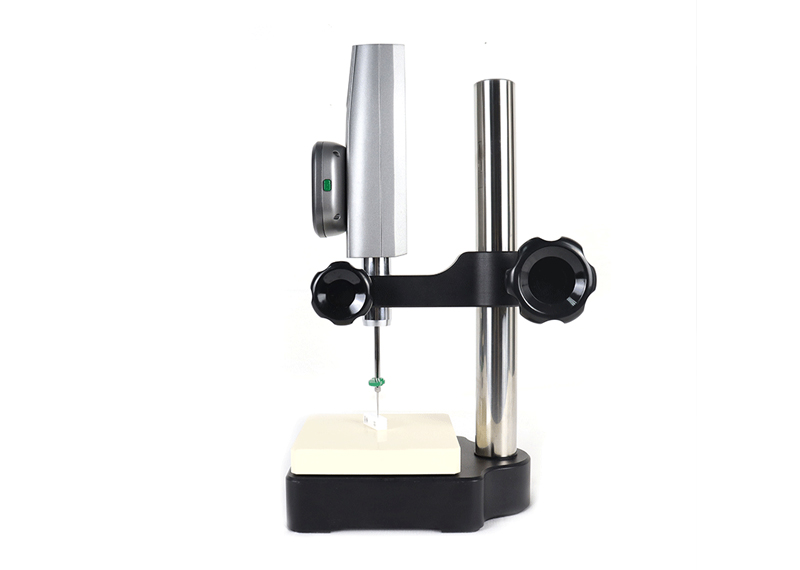

DHG-050 Digital Height Gauge
The DHG-050 digital height master is a compact digital micrometer offering flawless contact measurements of dimensions, thickness and depth. This digital height master features a measuring length equal to 50 mm and accuracy of 1 µm at 20° C. This height master gauge stands are available in ceramic, granite for added stability and a wide variety of probe tips are available to suit most applications.
This electronic digital height gauge adopts high-precision grating sensor and precise guide rail, having stable precision, smooth hand feeling, no hop during fast measurement.
Features of DHG-050 Digital Height Gauge
Measuring length equal to 50mm
Accuracy of 1 µm at 20°C
Readings as small as 0.1 µm or even 1 µm can be made depending on the counter.
High-quality ceramic platform, stable and wear-resistant
Support power bank （Optional）
Specification of DHG-050 Digital Height Gauge
|
Measurement |
0-50 mm |
|
Accuracy(20℃) |
≤1μm |
|
Repeatability(20°C) |
0.2μm |
|
Minimum Readout |
0.1μm |
|
Response Speed |
Max 5000mm/s |
|
Measuring Force |
1.0-1.5N |
|
External Output |
USB |
|
Displayer |
8bits High Brightness Green LED |
|
Probe |
Ball, Flat, Conical |
|
Unit |
mm/inch |
|
Operating Environment |
Temperature: 0-40℃ |
|
Humidity: 20-80% |
|
|
Table Size |
130x130mm |
|
Power Adaptor |
AC: 100-240V 50/60Hz Output: DC 5V/1A |
|
Standard Accessories |
Stand, Ball Tip, Flat Tip, Conical Tip |
|
Optional Accessories |
Special-shaped Tips, Low Measuring Force Device, Portable battery, Foot Switch |
|
Size |
200x138x397 mm |
|
Weight |
11.6kg |
As one of measuring instruments manufacturers, we can offer kinds of force gauge for sale, anything you need, please contact us.
