Diamond Wire Drawing Die Blanks

Quantité : 8000kgs   Prix : USD0.025 - USD1.05

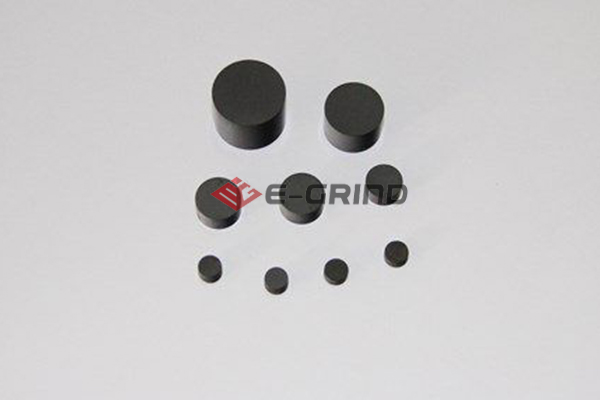

The diamond pcd die blanks are produced under ultra-high temperature and ultra-high pressure. It consists of diamond powder and metal catalyst (Cobalt). It features high wear resistance, hardness and thermal conductivity, high mechanical strength, and tenacity. Diamond die blanks are mainly for drawing a wide range of wire such as copper, aluminum, nickel, stainless steel etc.

E-Grind is one of the most professional wire drawing dies suppliers , which provides two series of Diamond Wire Drawing Die Blanks: CDB Series and TDBY Series. 5 grades of grain size available: 3 microns, 5 microns, 10 microns, 25 microns and 50 microns.

CDB Series: self-supported die blanks, for all types of wire drawing, especially where cost is the main concern.

CDBL Series: Self-supported Die Blanks (Hexagonal)

Part No.

ADDMA No.

Dimensions (mm)

Max. Die Size
(mm)

Avg. Grain Size (um)

Diagram

D

d

T

3

5

10

25

50

CDBL2510

D6

-

2.5

1.0

0.4

○

●

●

●

-

4.1.1

CDBL3215

D12

-

3.2

1.5

1.0

○

●

●

●

-

CDBL5225

D15

-

5.2

2.5

1.5

○

●

●

●

-

CDBL5235

D18

-

5.2

3.5

2.0

○

●

●

●

-

Part No.

ADDMA No.

Dimensions (mm)

Max. Die Size
(mm)

Avg. Grain Size (um)

Diagram

D

d

T

3

5

10

25

50

CDBY2510

D6

-

2.5

1.0

0.4

○

●

●

●

-

4.1.2

CDBY 3215

D12

-

3.2

1.5

1.0

○

●

●

●

-

CDBY 5225

D15

-

5.2

2.5

1.5

○

●

●

●

-

CDBY 5235

D18

-

5.2

3.5

2.0

○

●

●

●

-

CDBY 8040

D21

-

8.0

4.0

3.0

○

●

●

●

-

CDBY 9853

D24

-

9.8

5.3

4.0

○

●

●

●

-

CDBY 13085

D27

-

13.0

8.5

5.0

-

●

●

●

○

CDBY160120

D30

-

16.0

12.0

7.0

-

-

●

●

○

CDBY Series: Self-supported Die Blanks (Round)

TDBY Series: tungsten carbide supported die blanks. It is for drawing with high intensity.

Tungsten Carbide supported Die Blanks (Round)

Part No.

ADDMA No.

Dimensions (mm)

Avg. Grain Size (um)

Diagram

D

d

T

3

5

10

25

50

TDBY4015

D12

8.12

4.0

1.5

-

●

●

●

●

4.2

TDBY4023

D15

8.12

4.0

2.3

-

●

●

●

●

TDBY 4029

D18

8.12

4.0

2.9

-

●

●

●

●

TDBY 7040

D21

13.65

7.0

4.0

-

●

●

●

●

TDBY 7053

D24

13.65

7.0

5.3

-

●

●

●

●

TDBY 12987

D27

24.13

12.9

8.7

-

●

●

●

●

TDBY 129120

D30

24.13

12.9

12.0

-

-

●

●

●

TDBY150120

D30

24.13

15.0

12.0

-

-

●

●

●

TDBY152120

D31

24.13

15.2

12.0

●

●

TDBY150120

D33

24.13

15.2

15.0

●

●

ADDMA: American Diamond Die Manufactures' Association
D: Total Blank Diameter d: Diamond Diameter
T: Diamond Thickness

E-Grind Abrasives is professional in diamond and CBN products with over 50 years experience. If you want to know more about the abrasive powder types, just contact us! We sincerely invite and welcome people from all around the world to invest and create more values together.
