Diamond Wire Drawing Die Blanks

What is PCD wire drawing dies used for?

The diamond wire drawing die blank is made by sintering diamond micropowder under the action of various metals (containing cobalt) catalysts using ultrahigh temperature and ultrahigh-pressure processes. During the sintering process, high-strength diamond bonds are formed between the diamond microcrystalline particles, and the diamond fine powder particles are strongly combined to form polycrystalline diamond (PCD). The diamond drawing dies blank manufactured by this method has high wear resistance, hardness and thermal conductivity, but also has good mechanical strength and toughness. It is suitable for drawing copper, aluminum, nickel and other non-ferrous metals, stainless steel and various alloy wire.

E-Grind is a professional wire drawing dies suppliers and diamond dies manufacturers, we provide two series of Diamond Wire Drawing Die Blanks: CDB Series and TDBY Series. 5 grades of grain size available: 3 microns, 5 microns, 10 microns, 25 microns and 50 microns.

E-Grind PCD Wire Drawing Dies Series

CDB Series: self-supported pcb die blanks, for all types of wire drawing, especially where cost is the main concern.

CDBL Series: self-supported pcd wire drawing die blanks(Hexagonal)

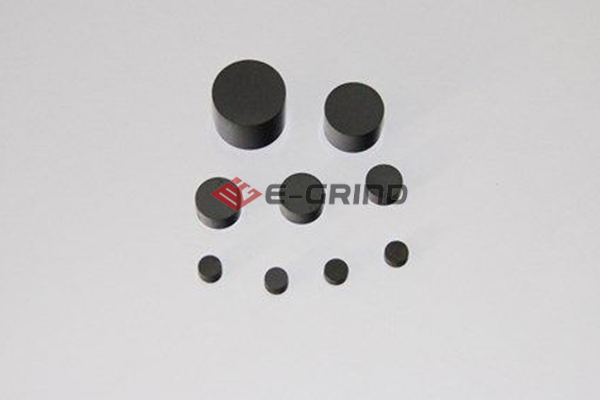

CDBY Series: Self-supported Die Blanks (Round)

TDBY Series: tungsten carbide supported die blanks. It is for drawing with high intensity.

Tungsten Carbide supported Die Blanks (Round)

ADDMA: American Diamond Die Manufactures' Association

D: Total Blank Diameter

d: Diamond Diameter
T: Diamond Thickness

The diamond wire drawing dies blank is made by sintering diamond micropowder under the action of various metals (containing cobalt) catalysts using ultrahigh temperature and ultrahigh-pressure processes. During the sintering process, high-strength diamond bonds are formed between the diamond microcrystalline particles, and the diamond fine powder particles are strongly combined to form polycrystalline diamond (PCD). The diamond wire drawing dies blank manufactured by this method has high wear resistance, hardness and thermal conductivity, but also has good mechanical strength and toughness. It is suitable for drawing copper, aluminum, nickel and other non-ferrous metals, stainless steel and various alloy wire.

E Grind is a professional PCD wire drawing dies supplier and manufacturer, we provide two series of Diamond Dies Blanks: CDB Series and TDBY Series. 5 grades of grain size available: 3 microns, 5 microns, 10 microns, 25 microns and 50 microns.
