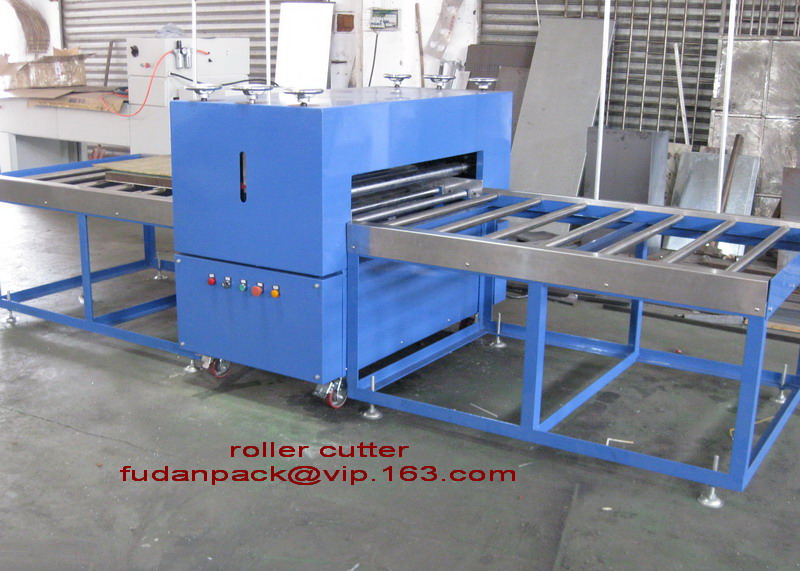

Die roller cutter, roller cutting machine

die roller cutter, roller cutting machine

This is a cutting machine designed by utilizing the pressure generated when the rolling

wheel and the blade mold contact. It is applicable to the shaping and cutting of an entire

material such that it may keep from the danger of operating conventional hydraulic machines.
Multiple layers may be cut at one time such that the production is large.

Features1.Material saving: molds are arranged in advanced without wasting any material.
2.Highest safety: no contact between operator and any rolling portion.
3.High speed: the fastest cutting with 4 seconds for each mold.
4.Largest area cutting: Multi-unit cutting for one mold with simultaneous cutting for

multiple layers.
5.Adaptation to special spec, material: spec that is difficult for cutting or the cutting

for particularly thin, particular thick objects, such as line removal (paper box, plastic

box …), dashed line, PET butterfly hole … etc.
6.Easy operation: only 3 minutes are necessary for blade mold replacement, blade mold

calibration without technical personnel.
ApplicationIt is applicable to cuttings for various plastics, rubbers, card boards,

corrugated boards, leathers, non-woven fabrics, cloths, aluminum expansion net, asbestos,

skin packaging and other entire material cuttings, for example, various facial masks, foods

baking papers, skin packaging … etc.

Application1.Skin Packaging
2.Baking papers for steamed stuffed buns, steamed breads
3.Foot-mounting advertisement boards
4.Cartons, paper boxes, plastic boxes, cuttings for manual processing boxes
5.Cardboard frame cutting
6.Vacuum forming (blister) cutting
7.PET shaping
8.Acryl plate shaping
9.Slip sheets for various garments: shirt collar, plate for fixing cuff
10.Tarpaulin for vehicles, cutting of heat isolation material inside the hood
11.Garment section of abrasive paper
12.Shaping of aesthetic composition
13.Mouse pad
14.Manufacturing of beach cap
15.Garment section of umbrella
16.Sole, insole rapid cutting
17.Garment section of fur clothing, rubber ball
18.Shaping of disc type satellite antenna
19.Sculpted notepaper
20.Pads of automobile, motorcycle
