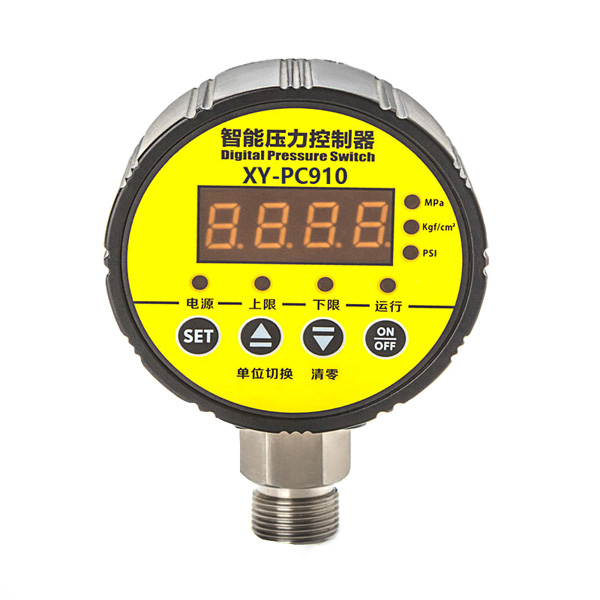

Digital Pressure Controller XY-PC910

4-Digits LED, Φ80mm Plastic Shell; One Relay, Output Signal NONC; Set Alarm Point In Whole Measureme

Intelligent Pressure display and control, alternative for Mechanical Pressure Switch and Gauge together, wield in Industry applications such as Automatic System, Mobile Working Machines, Medical Equipment, Pump, Compressor, Energy and Water Treatment, Agricultural Equipment, Test System, Hydraulic System and Pneumatic System

Typical Feature

Stainless steel 304 shell, dial diameter Ф100mm

4-Digits LED Display,

Multi-unit convert MPa/Kgf/cm2/PSI

Accuracy level: 1.0%FS

Power supply 12 or 24VDC; Optional 220VAC

Relay output signal NONC

High precision, quick response time, stable and easy setting up

Digital Pressure Controller XY-PC910 Brief Introduction

XY-PC910 is an Intelligent Micro Digital Pressure Controller, with 80mm diameter Plastic shell, integrating pressure measurement, display and control function. It has a variety of excellent functions, such as one-button reset, Multi-pressure Unit Converting and it's easy to reset setting, adjusting and installation.

This series of digital pressure controller price has one relay, which can be set up normally open and normally closed; these alarm points to control high and low pressure of air or liquid, in addition, it is with one key reset, at the same time, calibration, shifting display unit, setting return difference and other option functions.
