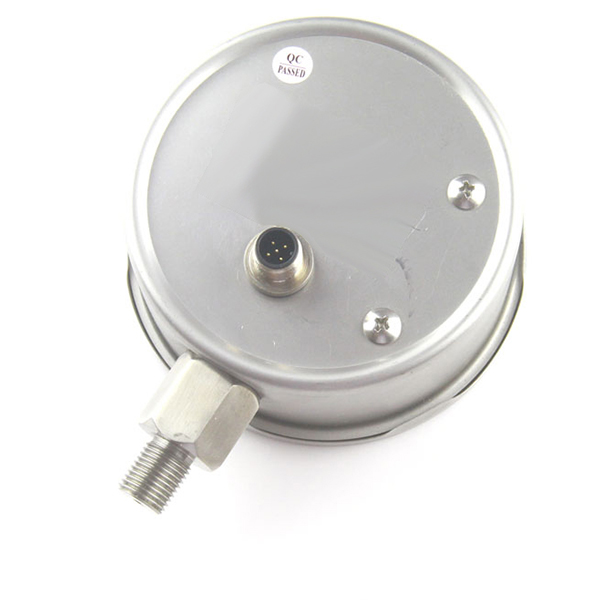

Digital Pressure Gauge XY-PG380E
4-Digits LED Easy Read In Dark; Good Shock Resistance; Lower Mount; Φ80mm Dial
SS304 shell, Standard Accuracy 0.5%FS; Good shock resistance to alternative Mechanical Pressure Gauge in High vibration, frequent pressure shock work condition
Typical Feature
Dial diameter 80 mm
With 4-Digits LED Display.
Accuracy level: 0.5%FS
Wield measurement pressure range(0~160MPa), or customized
Powered 12VDC, or 24VDC;220VAC and 380VAC are optional
Multi pressure multiunit switching (PSI/Kg.F/cm²/MPa)
One key Reset
Digital Pressure Gauge XY-PG380E Brief Introduction
XY-PG380E is cheap digital pressure gauge with LED Display, which is built-in high accuracy pressure sensor. It displays real-time pressure at short response time, the typical characteristics are high accuracy and excellent long-term stability, designed for Pressure Container, Air Compressor, Automated Machine, Heat Pump Industry, it's a very good alternative for Mechanical Pressure Gauge.
The Digital Pressure Gauge has an LED display with 4-Digits. There are 2 buttons on the front panel to control Reset, Unit converting. It is easy to install in Pipeline, Isolation Tank or others connects device, easy to set up operating parameter. Working condition is -20~80℃.
It has 304 stainless steel shell and connect joint, can be used in measuring gas, liquid, oil and other medium it has very good shock resistance and long working life.
XY-PG380E Digital Pressure Gauge is powered by 12VDC or 24VDC,220VAC and 380VAC are optional. There are wield Measurement Range 0~160MPa, other Measurement Ranges are optional. Machinal joint include Thread, Flush Diaphragm, Clamp, Flange, Radiator and Differential Two-way Fitting.
