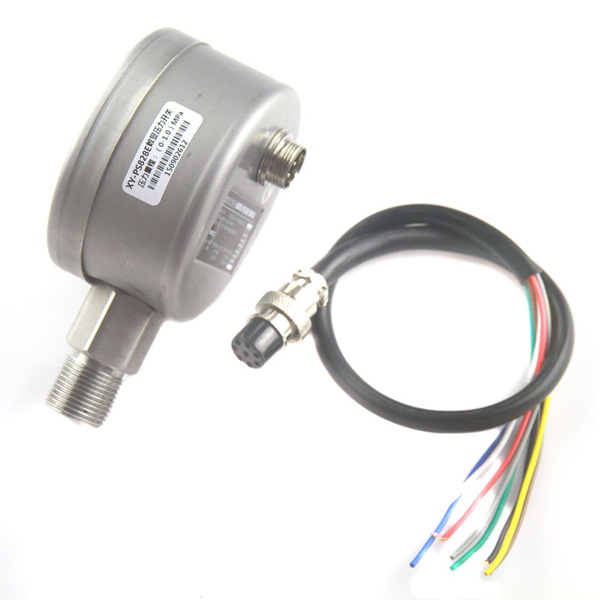

Digital Pressure Switch XY-PS828EA
4-Digits LED, Φ80mm SS304 Shell; Dual Relay, Output NONC; Optional 4-20mA or RS485;
Intelligent Pressure display and control, alternative for Mechanical Pressure Switch and Gauge together, wield in Industry applications
Typical Feature
Stainless steel 304 shell, dial diameter Ф80mm
4-Digits LED Display,
Multi-unit convert MPa/Kgf/cm2/PSI
Accuracy level: 0.5%FS
Power supply 24VDC; Optional 220VAC
Dual relay, output signal NONC, Optional 4-20mA or RS485
High precision, quick response time, stable and easy setting up
Digital Pressure Switch XY-PS828EA Brief Introduction
XY-PS828EA is an Intelligent Digital Pressure Switch, with 80mm diameter stainless steel shell, Optional Output 4-20mA or RS485; integrating pressure measurement, display and control function. It has a variety of excellent functions, such as one-button reset, Multi-pressure Unit Converting and it's easy to reset setting, adjusting and installation.
Two relays are built in, this series of digital pressure switches have dual relays, which can be set up two ways of normally open and normally closed alarm points separately, also are able to control two ways of high and low pressure of air or liquid, in addition, it is with one key reset, at the same time, calibration, shifting display unit, setting return difference and other option functions.
The intelligent cheap pressure switch is equipped with high-precision instrument amplifier to amplify pressure signal, built-in temperature compensation sensor, is the high precision equipment for detecting and monitoring pressure, strong anti-electromagnetic interference (EMI), surge protection, reverse protection and so on.
XY-PS828EA Intelligent Digital Pressure Switch can be widely used in Automatic System, Mobile Working Machines, Medical Equipment, Pump, Compressor, Energy and Water Treatment, Agricultural Equipment, Test System, Hydraulic System and Pneumatic System.
