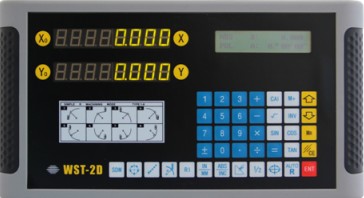

Digital Readout

1,Applicable to:

milling machine, Boring machine, etc.

2,Basic Functions:

1)Reset;
2)MM/INCH Mode;
3)Enter dimension;
4)1/2 Function;
5)ABB/INC Mode;
6)Clear 200 sets SDM） datum;
7)Non-volatile Memory;
8)Sleeping Mode;
9)Ref Datum Memory Function;
10)Linear Compensation;
11)Non-Linear Error Compensation;
12)200sets sub datum Function;
13)Parameters setting

3,Special Function:

1) Linear Drilling;
2) PCD Function;
3) R Function;
4) Chambering;
5) Tool Compensation Function;
6) Machining of Oblique plane;
7) Calculator

4,Features:

Linear Scale when used in conjunction with our counter is designed for manual machine tools or other equipment having linear movements, for example cut off saws. Alternatively the scale output can be used for automatic positioning control of machine tools or similar equipment via CNC or PLC units. The scales may also be fitted to co-ordinate measurement or other measurement equipment used for high accuracy inspection & measurement. Our company is the earliest national professional producer of optical grating sensors(linear scale) in China and offers a comprehensive range of products. We are able to quote on special scales on request.

5, Brief introduction to product classification:

The optical grating sensor linear scales manufactured by us are closed type. The closed type of linear encoder is mainly used in conjunction with our DRO counters on machine tools and similar equipment; these scales are divided into several types, including: standard type, and large type with resolution of 0.1um, 0.2um, 0.5um, 1um, 2um, 5um, 10um, etc.

6,Reminder:

According to different demands, customer can choose our various linear scales and DRO for various machine tools for example, milling machine, lathe machine, grinding machine and EDM etc...
