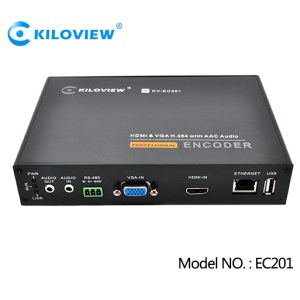

Digital TV 1080P HD H.264 Hardware Encoder/h 264 hdmi video audio encoder hardware cabl...

Now it's easy to distribute your client's H.264 video files to websites, YouTube™, iPhone™ and even iPad™. Kiloview H.264 SDI /HDMI Video Encoder handles capture from all popular video formats so you can encode directly from professional broadcast decks!

• H.264 encoder Real time encoding

H.264 High Profile (up to level 4.1) encoding, encoding delay is bellow 50ms;

• Versatile format supported

Supported HDMI formats: 1080p/1080i/720p/480p/576p/480i/576i (up to 60Hz)

• Compatible with VESA display resolution

Supported VGA formats: VESA standard resolution up to 1920x1200@60Hz

• Users Friendly

Web based management for software, online video preview, which offering a more efficient and better user experience for all.

• H.264 encoder International Standard protocol

Media transmission protocol: RTP/RTSP,RTMP,HLS,MPEG-TS Push,HTTP
Controlling protocol: TCP
Network Management Protocol : HTTP / Onvif
PTZ controlling protocol : Pelco-D / Sony Visca(through RS485)

• SDK supported!

Kiloview provides SDK to professional users for customized application.

Need H.264 encoder email: kathy#kiloview.com(#represent@)

Kiloview engineers debug for Hunan TV program launching ceremony which is a big festival in China.

• Interface

Video input:

1*HDMI 1*VGA

Video source selection : HDMI or VGA

Analog audio input: 1*3.5mm

Analog audio output: 1*3.5mm

RS-485: 1* 3PIN

Network: 1*RJ-45, 10/100M self-adaptive Ethernet

USB: 1*USB 2.0

Power Supply: DC 12V, 2A (External Power Supply)

• Signal

HDMI : HDMI 1.3 / HDCP 1.3

Supported HDMI formats: 1080p/1080i/720p/480p/576p/480i/576i (up to 60Hz).Compatible with VESA display resolution

VGA compatible standard: VGA/XGA/UVGA/SVGA/SXGA/SXGA+/WXGA/WXGA+/
WSXGA/WUXGA

Supported VGA formats: VESA standard resolution up to 1920x1200@60Hz

• Encoding:

Video encoding: H.264 high profile( up to level 4.1 )

Audio encoding: AAC-LC, G.711(u-Law/a-Law)

Encoding delay: ≤50ms

Video encoding bitrate: 512Kbps ~ 20Mbps

Audio encoding bitrate: 64Kbps

• Transmission:

Media transmission protocol : RTP/RTSP,RTMP,HLS,MPEG-TS Push,HTTP

Controlling protocol : TCP

PTZ controlling protocol: Pelco-D / Sony Visca(through RS485)

• Management:

Management interface: Web

Remote management: Support

Firmware upgrading: Support

• Operation environment :

Operation Temperature: 0℃ ~ 80℃

Relative Humidity: 20 ~90%RH(non-condense)

Power dissipation: 5W
