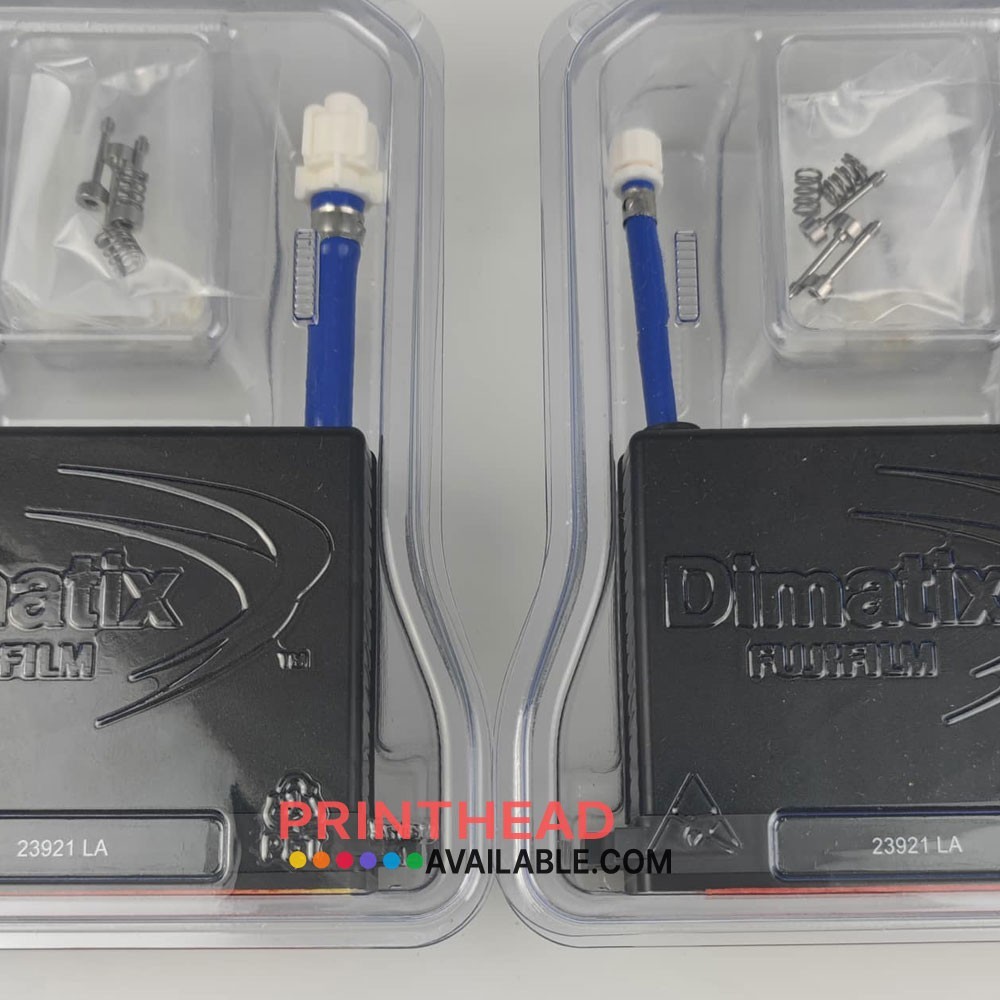

Dimatix SG1024/LA Printhead

The StarFire™ SG1024/LA is a compact, self-contained unit built to withstand demanding industrial textile, wide format and commercial printing and decoratind. It uses field proven materials to deliver consistent output over a long service life with continuous ink re-circulation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.
Features

Number of addressable Jets per module: 1024
Print width: 64.96mm (2.55 in)
Native resolution: 400 dpi
Native drop size: 72pl
Largest drop size: 200pl
Inkjet operating temperature range: Up to 50°C (122°F)
Nominal fluid viscosity: 8-20 cP recommended)
Nozzle Plate technology: Metal
Printhead heat type: Integrated heater, thermal transfer
Integral temperature sensor: Integrated
Compatible jetting fluids: UV-curable, organic solvents, and aqueous inks
This printhead carries a manufacturer warranty.
Country of origin : Japan
