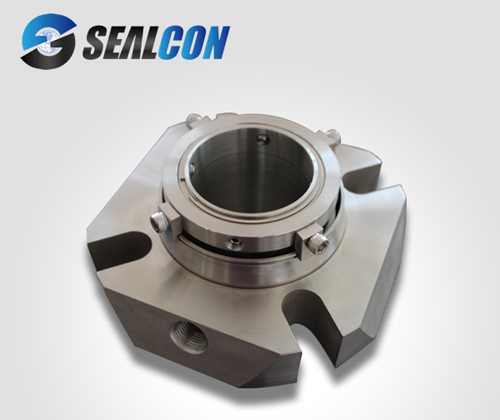

DIN Standard Double Cartridge Seals D21 with ANSI Bore Replacing Burgman Cartex DN
Double Cartridge Seals D21
Replacement for:
BURGMAN CARTEX DN
Features:
DIN standard
ANSI bore
Performance Capabilities of cartex mechanical seal D21
Temperature: -20℃ to 250℃, dependent on the elastomer
Pressure: Up to 25 bar
Speed: Up to 25 m/s
End play/axial float allowance ±1.0mm
Sizes of Double Cartridge Seals D21
25mm to 100mm
1” to 4”
Materials Combination of Double Cartridge Seals D21
Face: Carbon, SiC, TC
Seat: SiC, TC
O-rings: NBR, EPDM, VITON, Aflas, FEP, Kalrez, Chemraz etc.
Spring: SS316, Hastelloy C
Metal parts: SS316
Specification of Double Cartridge Seals D21
|
Double Cartridge Seals by Size |
d |
D |
D1 |
L1 |
L2 |
L3 |
C |
E |
|
D21-25 |
25 |
43 |
105 |
53.4 |
33.1 |
25.4 |
62 |
13.2 |
|
D21-28 |
28 |
46 |
105 |
53.4 |
33.1 |
25.4 |
62 |
13.2 |
|
D21-30 |
30 |
48 |
105 |
53.4 |
33.1 |
25.4 |
65 |
13.2 |
|
D21-32 |
32 |
49.8 |
108 |
53.4 |
33.1 |
25.4 |
67 |
13.2 |
|
D21-33 |
33 |
49.8 |
108 |
53.4 |
33.1 |
25.4 |
67 |
13.2 |
|
D21-35 |
35 |
53 |
113 |
53.4 |
33.1 |
25.4 |
70 |
13.2 |
|
D21-38 |
38 |
56 |
123 |
53.4 |
33.1 |
25.4 |
75 |
14.2 |
|
D21-40 |
40 |
58 |
123 |
53.4 |
33.1 |
25.4 |
75 |
14.2 |
|
D21-42 |
42 |
60.5 |
133 |
53.4 |
33.1 |
25.4 |
80 |
14.2 |
|
D21-43 |
43 |
60.5 |
133 |
53.4 |
33.1 |
25.4 |
80 |
14.2 |
|
D21-45 |
45 |
62.5 |
138 |
53.4 |
33.1 |
25.4 |
81 |
14.2 |
|
D21-48 |
48 |
65.6 |
138 |
53.4 |
33.1 |
25.4 |
84 |
14.2 |
|
D21-50 |
50 |
68 |
148 |
53.4 |
33.1 |
25.4 |
87 |
14.2 |
|
D21-53 |
53 |
72 |
148 |
53.4 |
33.1 |
25.4 |
97 |
18 |
|
D21-55 |
55 |
73 |
148 |
53.4 |
33.1 |
25.4 |
90 |
18 |
|
D21-60 |
60 |
78 |
157 |
53.4 |
33.1 |
25.4 |
102 |
18 |
|
D21-65 |
65 |
84.8 |
163 |
53.4 |
33.1 |
25.4 |
109 |
18 |
|
D21-70 |
70 |
93 |
178 |
53.4 |
33.1 |
25.4 |
118 |
18 |
|
D21-75 |
75 |
100 |
190 |
63.9 |
44.1 |
28 |
129 |
18 |
|
D21-80 |
80 |
106.4 |
195 |
63.9 |
44.1 |
28 |
135 |
18 |
|
D21-85 |
85 |
109.5 |
198 |
63.9 |
44.1 |
28 |
139 |
22 |
|
D21-90 |
90 |
115.9 |
205 |
63.9 |
44.1 |
28 |
145 |
22 |
|
D21-95 |
95 |
119.1 |
208 |
63.9 |
44.1 |
28 |
148 |
22 |
|
D21-100 |
100 |
125.4 |
218 |
63.9 |
44.1 |
28 |
154 |
22 |
|
Double Cartridge Seals by Size |
d |
D |
D1 |
L1 |
L2 |
L3 |
C |
E |
|
D21-1" |
1 |
1.693 |
4.134 |
2.102 |
1.303 |
1 |
2.44 |
0.52 |
|
D21-1.125" |
1.125 |
1.811 |
4.134 |
2.102 |
1.303 |
1 |
2.44 |
0.52 |
|
D21-1.25" |
1.25 |
1.96 |
4.33 |
2.102 |
1.303 |
1 |
2.64 |
0.52 |
|
D21-1.375" |
1.375 |
2.086 |
4.449 |
2.102 |
1.303 |
1 |
2.75 |
0.52 |
|
D21-1.5" |
1.5 |
2.2 |
<span style="font-size: 12.0000p |
