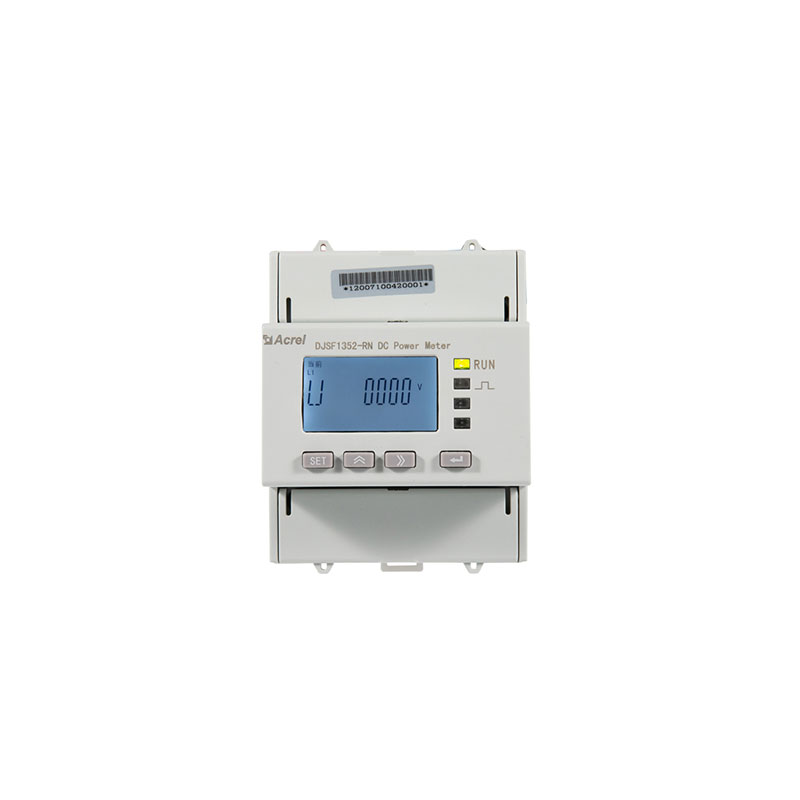

DJSF1352-RN
DJSF1352-RN rail-mounted dc energy meter for solar system with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system.
|
Input |
DC 0~1000V |
||
|
external shunt connection ( 0-75mV ) or hall sensor access (0~20mA, 4~20mA, 0~5V,0~10V) |
|||
|
Accuracy |
Class 0.5 or Class 1 |
|
|
|
Communication |
RS485 Modbus-RTU, DL/T 645-2007 |
|
|
|
Display |
LCD |
|
|
|
Optional |
/2C: the second channel RS485(Modbus-RTU) |
||
|
/K: 2DI/2DO |
|
||
|
/D: the second channel energy metering |
|||
|
/S: Class 0.5 |
|
|
|
|
Power supply |
AC/DC 85~265V or DC24V or DC48V(P1) |
||
|
Dimension |
94*71*72mm |
||
|
Weight |
0.6kg |
||
