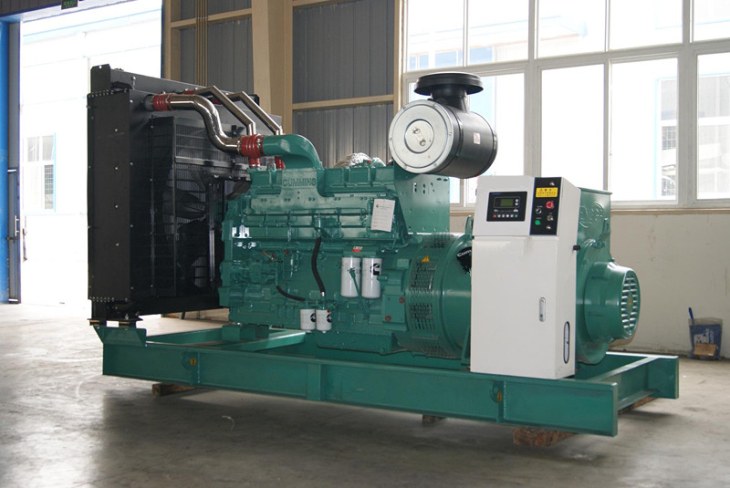

Dong Feng Cummins Generating Set

Cummins Power Generation is a global provider of power generation systems, components and services in standby power and other markets to meet the needs of a diversified customer base. Their vision - "Making people's lives better by unleashing the Power of Cummins" – is an ambitious statement defined by how simple it is. Put simply, Cummins takes pride in the engines and generators they manufacture to serve customers all over the world30KW DCEC CUMMINS series diesel generator sets technical specification Generator set technical parameters：Model number：WEB-30Voltage：400V/230VRated power（KW)：36Kw /40KwRated frequency：50HzRated current（A）：54ARated rotating speed：1500rpmRated power factor：COSΦ=0.8（lagging）Starting mode：Electric startingDimension：3500×1350×1950（L×W×H mm）Weight：3330kgFuel grade：（Standard）0#Light diesel oil（Nomal temperature）Fuel consumption（100%load）：231g/kW·hDiesel motor technical parameters Brand/place of origin: DCEC CUMMINSCooling way：Closed water cycling coolingType：4BT3.9-G1Power：36Kw /40KwNumber of Cylinder：4/LDisplacement(L)：3.9Bore *stroke：102×120mmAir intake mode：turbochargingSpeed regulation method: ：Mechanical governing systemFuel supply way：Direct injectionStarting mode：DC24V Electric startingRotate speed：1500rpmGenerator technical parameters Motor brand：TongJi MotorProtection grade：IP22Type：STC-30Connection mode：three-phase four wire,Y type connectionPower：30kWAdjusting mode：AVRRated Voltage：400/230Frequency：50HzInsulation grade：HOutput factor：COSΦ=0.8（lagging）Voltage fluctuation rate（%）：≤±0.5Transient voltage regulation（%）：＋20～－15Steady State frequency regulation: 0~5%Transient frequency regulation: +10~-7%Voltage fluctuation rate：≤0.5%Frequency fluctuation rate：≤0.5%Generator set standard configurationØDirect injection internal combustion engine (diesel oil)；ØAC synchronous generator (single bearing)；ØSuitable environment 40℃－50℃ radiator tank, belt-driven cooling fan, protection cover of fan；ØAir switch, standard configuration control panel；ØØGenerator set steel common base (including: damping rubber blanket)ØDry-type air filter, fuel filter, lubricating oil filter, starting motor, self-charging generator；ØStarting batteries and connecting cables；ØIndustrial 9dB silencer and standard component for connectionØAttached documents: Original technique documents for diesel engine and generator, generator set instruction, test report.Optional component (extra charge)ØEngine oil, diesel oil, water-jacket , anti-condensation heaterØSplit-type fuel tank, integrated fuel tank baseØAutomatic battery chargerØRain-proof model set(Bin)ØSelf-protection, self-starting control panelØSilent type model set(Bin)ØThree-remote function control panelØMobile Trailer type power station(Bin trailer)ØATSØSilent type mobile station(Bin trailer)Executive Standardnternational standard certification ISO9001：3500implementation of industry standard GB/T19001-3508 url: http://www.fjtjmotor.com
