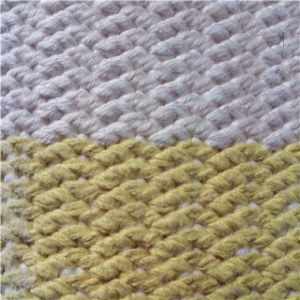

Double backer belt

Double backer belt

Double backer belt can be divided into woven middle speed corrugator Belt, High speed corrugator

belt with low noise, Enhanced middle speed corrugator belt Enhanced high speed corrugator belt

(low noise) and Hydrophilic type woven corrugator belt a

High speed corrugator Belt with Low Noise was developed to cooperate the high speed running

and rapid dying of the corrugated board. The unique structure and the high-

quality Pet facilitates steam evaporation from the paperboard.The twill weave surface of the belt </ p>

helps to reduce the noise and increase the friction coefficient.

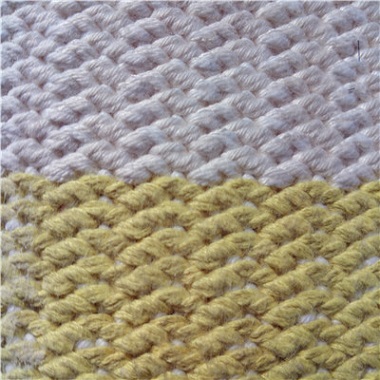

Enhanced corrugator Belt with kevlar edge is a consistent development based on the high speed

corrugator belt. Kevlar fibers is characterised with good heat-resistence and abrasion-

resistence.Because of the frequently changing paperboard widths and load requirement,the usage

of kevlar fibers ensure the heat-resistence and wear-

resistence ability of corrugator belt and prolong the lifespan.

Material: 100%PET

Width: 1200-3200mm

Thickness: within 10mm

Applt speed: 100m-300m/min

Air-permeability: Up to 2.08m3/m2 min

Heat resistance: 180 Centigrade -200 Centigrade

Fasteners Clipper Steel

Products Features

1.Heat Resistance

2.Easily cleaned

3.Long life time

4.Stable Dimension

5.High Tensile Strength

6.Good Air-permeability

7.Good Moisture Adsorption

8.Suitability: Suitable for linear speed 100m-300m/min

Application

Double backer belt is a special part of corrugated machine automatic production line. Its main

function is to ensure the smooth of paperboard transportation and the rapid evaporation of the

water inboard.It is also used in honeycomb paperboard factory and cardboard factory.
