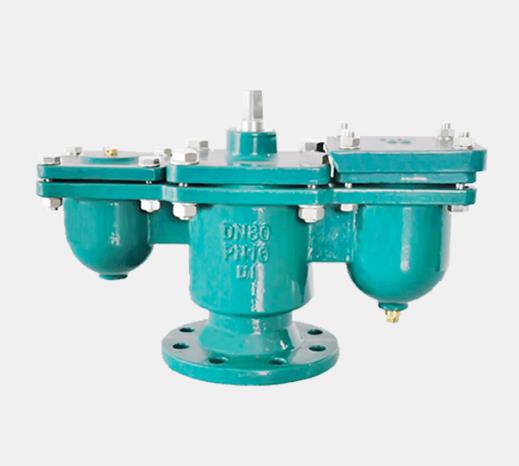

Double Orifice Air Release Valve
Prix : US $1 - 3,000 / Set
Basic information
The double orifice air release valve is a pipeline will be matched equipment, apply to the temperature does not exceed 100 water, hot water pipe on the pipe from the air.
Features
1. Body is provided with a shock-proof inner tube to protect the float
2. Lower water pressure can be closed to prevent drainage
3. When there is negative pressure, the piston quickly opens to breathe
4. Stainless steel floating ball, long life.
Principle
The double orifice air valve exhaust, buoy, by gravity pull down one end of the lever, the lever in the tilt state at this moment, in the leverage and vent contact appeared gap, air through the vent through the gap, with the air discharge, water level rise, buoy under the effect of the buoyancy of water float upwards, the lever on the seal face pressure on the porosity, gradually until the vent is completely blocked. The exhaust valve is now completely closed.
Installation and Commissioning
When installing, always install a protective valve on the front end to avoid stopping water from being tested. For specific use, please consult ZhengFeng Valve Group.
Product scope, Standards & Materials
Size Range: 2"~12"
Pressure Rating: 10bar ~ 25bar
Face to Face Dimensions: AMSE B16.10, EN558-1
Flange End Dimension: AMSE B16.1/16.42, AS4087, EN1092-2
Coating: Fusion Bonded Epoxy Coating
Inspection and Test: ISO 5208 / EN 12226-2
|
Part |
Material |
Standard |
|
Body |
Ductile Iron |
EN 1563/DIN 1693 |
|
Bonnet |
Ductile Iron |
EN 1563/DIN 1693 |
|
Exhaust Hood |
Ductile Iron |
EN 1563/DIN 1693 |
|
Float Ball |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
|
Strainer |
Stainless Steel 431 |
EN10088-1/ASTM A959 |
|
Tank |
EPDM / NBR |
ISO 4633 |
|
For the materials options not listed, consult factory. ZhengFeng manufactures valves in more than 50 different alloys. |
||
